Impact crusher I-140RS

mobilecrawler

Product overview

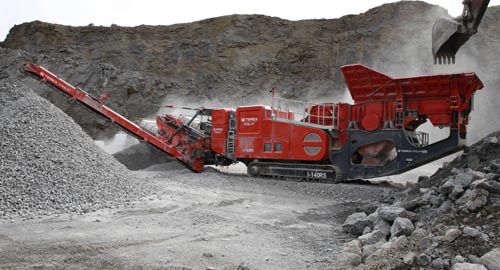

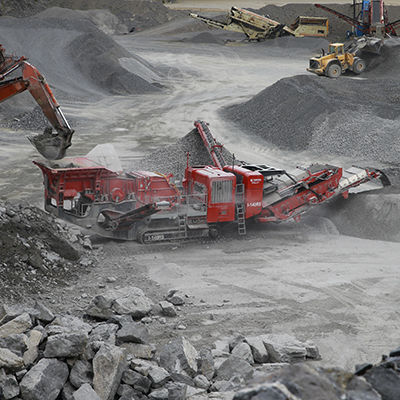

The Finlay I-140RS is a next‑generation impact crushing machine designed for quarrying, mining, demolition and recycling. Its redesigned layout and advanced impact chamber improve material flow, achieve high reduction ratios and produce a consistent product shape. The machine features an on‑board quick‑detach single‑deck screen (4.8 m x 1.5 m) for flexible use with or without recirculation.

General description
The I-140RS integrates the Finlay CR032 impact chamber with direct drive and an advanced electronic control system. For operations that do not require material recirculation, the complete screening and recirculating system can be removed quickly, simplifying transport and reducing service time. High productivity, straightforward maintenance and operator‑focused design make the I-140RS suitable for large‑scale producers and contract crushing operators.

Key features

• Optimised material flow: component widths increase through the machine to reduce blockages and improve throughput.
• Hydraulically assisted apron adjustment for fast and precise settings.
• Heavy‑duty vibrating grizzly feeder (VGF) with integral pre‑screen to remove fines and separate bypass material for reprocessing.
• Quick on‑board detachable recirculating system including a large 4.8 m x 1.5 m single‑deck screen.
• Recirculating conveyor can rotate for closed‑loop recirculation or be used for stockpiling oversized product.

Standard on-board systems & notable components

• On‑board 4.8 m x 1.5 m (16’ x 5’) single‑deck screen — quick detach for non‑recirculation applications.
• Detachable recirculating section (RS) — rapid removal when not required.
• Heavy‑duty VGF with integral pre‑screen.
• Full‑length main conveyor with impact bars at feed point; optional vibratory under‑crusher feeder and wear resistant liners.
• Fines conveyor: multiple belt options and discharge heights for effective fines removal and stockpiling.
• Bypass conveyor: hydraulically folds for transport; used to remove fines or bypass material.
• Re‑circulating conveyor: 500 mm (20") belt; hydraulically rotated between recirculation and stockpile modes.
• Impact chamber: Finlay CR032 with direct drive and electronic controls; rotor Ø1270 mm x 1220 mm (Ø50" x 48").
• T-Link telematics: fitted as standard with a free seven‑year data subscription for remote monitoring and fleet optimisation.

Downloads (available)

• Finlay-I140RS-Impact-Crusher (product brochure - English)
• Finlay-I140RS-Prallbrecher (product brochure - German)

Characteristics / Technical specifications

• Net Engine Power: Tier 3 - Cat 540 hp | Tier 4F / Stage IV - Scania 500 hp (Tier 3 - Cat 403 kW | Tier 4F / Stage IV - Scania 364 kW)
• Rotor Size: Ø50" x 48" (Ø1270 mm x 1220 mm)
• Operating Weight: 159,394 lbs / 72,300 kg
• Transport Dimensions: Height 12'5" | Width 11'5" | Length 71'2" (Height 3.8 m | Width 3.47 m | Length 21.7 m)
• Working Dimensions: Height 19'2" | Width 26'9" | Length 70'7" (Height 5.86 m | Width 8.17 m | Length 21.5 m)
• Hopper / Feeder: Fixed hopper with optional hydraulic folding & locking extensions; VGF capacity no ext 6 m³, with ext 9 m³; rear width no ext 2.17 m, with ext 3.60 m
• Screenbox (on‑board detachable): Deck size 4.8 m x 1.52 m; hydraulic drive; 22° screen angle; speed ~950 rpm; total screening area 7.5 m²; RS section quick detachable.
• Fines conveyor: belt width 1.4 m (55"); configurable discharge heights up to approx 3.54 m (11'8")
• Main conveyor: belt width 1.3 m (52"); working angle 22°; impact bars at feed point; full‑length for stockpiling.
• Bypass conveyor: belt width 0.8 m (32"); hydraulically folds for transport; discharge height approx 3.38 m (11'1").
• Re‑circulating conveyor: belt width 0.5 m (20"); hydraulic rotation between modes.
• Impact chamber rotor: Ø1270 mm x 1220 mm; apron settings primary max 150 mm / min 50 mm, secondary max 75 mm / min 20 mm.
