Impact crusher I-140

mobilecrawler

Overview

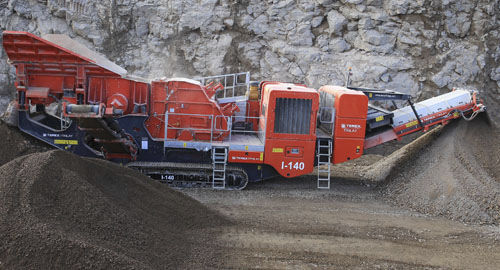

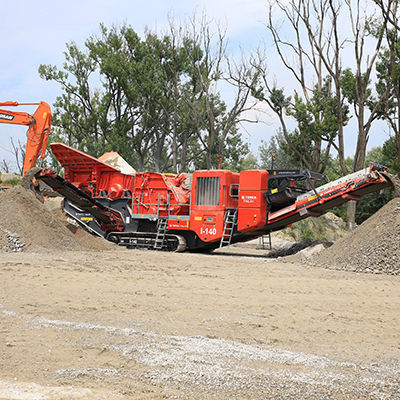

The Finlay I-140 tracked impact crusher combines a Terex CR032 impact chamber with direct drive and advanced electronic control to provide controlled material reduction and consistent product shape for quarrying, mining, demolition and recycling applications. The design improves material flow and simplifies maintenance and operation, making it suitable for large-scale producers and contract crushing operators.

Key features

• Progressive component widths improve material flow through the machine.
• Fully hydraulic assisted apron setting for efficient apron adjustment.
• Heavy-duty vibrating feeder (VGF) with integral prescreen removes fines and sizes bypass material for reprocessing.
• Optional under-crusher vibratory plate feeder with wear-resistant liners facilitates discharge flow.

Main Conveyor

• Belt width: 1.3 m (52”).
• Discharge height: 3.5 m (11'5”) (alternate 3.76 m / 12'4”).
• Stockpile capacity: approx. 69 m³ (90 yd³).

Impact Chamber

• Terex CR032 impact chamber; direct drive via V-belts.
• Rotor diameter: Ø1270 mm (50”).
• Rotor width: 1220 mm (48.8”).
• VGF inlet opening: 1.16 m x 865 mm (45.6” x 34”).
• Prescreen inlet opening: 1.17 m x 835 mm (46” x 33”).

Hopper / Feeder

• Fixed hopper with optional hydraulically folding and locking extensions.
• VGF hopper capacity (no extensions): 6 m³ (7.85 yd³); with extensions: 9 m³ (11.8 yd³).

By-pass Conveyor

• Belt width: 800 mm (32”).
• Discharge height: 3.38 m (11'1”).
• Stockpile capacity: approx. 64 m³ (83.7 yd³).
• Hydraulically folds for transport.

T-Link Telematics

• T-Link telematics hardware and software fitted as standard; free seven-year data subscription included.

Technical specifications

• Net engine power: Tier 3 - Cat 540 hp | Tier 4F / Stage IV - Scania 500 hp (equivalent: Tier 3 - Cat 403 kW | Tier 4F / Stage IV - Scania 364 kW).
• Rotor: Ø1270 mm x 1220 mm (Ø50” x 48”).
• Direct drive impact chamber via V-belts; Terex CR032 chamber.
• Main conveyor belt width: 1.3 m (52”); stockpile capacity approx. 69 m³ (90 yd³).
• By-pass conveyor belt width: 800 mm (32”); stockpile capacity approx. 64 m³ (83.7 yd³).
• VGF hopper capacity: 6 m³ (no extensions) / 9 m³ (with extensions).
• Operating weight: 107,410 lbs (48,720 kg).
• Transport and working dimensions available in the product datasheet.
