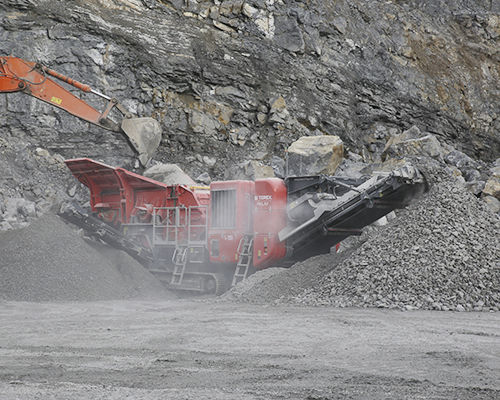

Impact crusher I-120

mobilesecondarycrawler

Overview
The I-120 horizontal impact crusher is a second-generation machine engineered to improve material flow and productivity in quarrying, mining, recycling and demolition. It incorporates the proven Finlay CR038 impact chamber with direct drive and advanced electronic controls to deliver high reduction ratios and a consistent product shape.

Key features

• Fully hydraulic apron setting assist for convenient and accurate chamber adjustment.
• Heavy-duty vibrating feeder (VGF) with integrated prescreen to remove fines and size bypass material for reprocessing.
• Curved corners on the feeder wear plate to minimise material build-up when handling sticky material.
• Hydraulically folding and locking hopper operable from ground level for safer and faster onsite set-up and tear-down.

Applications & options

• Designed for primary and secondary crushing in quarrying and mining.
• Recycling and demolition configurations available: underpan feeder, auto-adjust on chamber secondary apron, overband magnet and by-pass conveyor options.
• T-Link telematics available for remote monitoring and machine management.

Main components

• Impact chamber: Finlay CR038 chamber, direct drive via V-belts, rotor Ø1033 mm × width 1100 mm, inlet approx. 1130 mm × 800 mm, hydraulic apron adjustment.
• Main conveyor: belt width 1.1 m (44"), discharge height approx. 3.5 m, stockpile capacity approx. 63.8 m³, hydraulically lowerable for transport.
• By-pass conveyor (optional): belt width 650 mm (26"), max discharge height approx. 2.5 m, stockpile capacity approx. 18.1 m³.
• VGF hopper/feeder: capacity 5 m³ standard (with extensions ~8 m³), hydraulic folding extensions and locking.
• Undercarriage: shoe width 400 mm (16"), sprocket centres 3.243 m, capable of gradients up to 30°.
• Magnet separator (optional): suspended self-cleaning crossbelt overband magnet (permanent / twin pole versions).

Technical specifications

• Net engine power: Tier 3 - CAT 375 hp | Tier 4F / Stage IV - Scania 400 hp (alternatives in kW: 280 kW / 292 kW).
• Rotor size: Ø41" × 44" (Ø1033 mm × 1100 mm).
• Transport weight: approx. 81,571 lbs (37,000 kg).
• Transport dimensions: H 11'2" (3.4 m) × W 8'6" (2.6 m) × L 49'10" (15.2 m).
• Working dimensions: H 13'0" (4.0 m) × W 18'9" (5.8 m) × L 48'10" (14.9 m).
