Jaw crusher J-1175 Hybrid

mobilecrawlerhigh-capacity

Overview

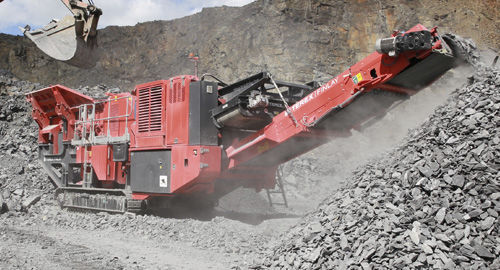

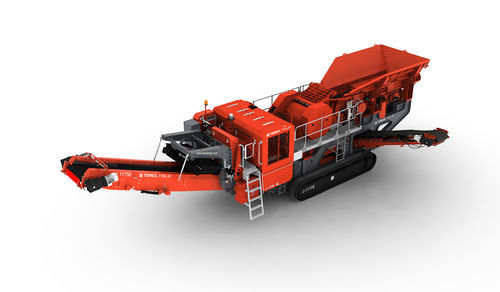

The hybrid Terex Finlay J-1175 portable jaw crusher provides operators with dual-power flexibility: mains electric connection or onboard genset powerpack. Both options deliver strong power with reduced servicing and maintenance costs compared with diesel/hydraulic plants. The unit integrates the Terex® JW42 high-performance electrically driven single-toggle jaw chamber and a heavy-duty variable speed VGF feeder for optimal production in quarrying, mining, demolition and recycling applications.

Key features

• Dual-power electric systems offering operational cost and efficiency benefits.
• Improved performance in dusty conditions and at high altitude.
• Automatic variable speed VGF ensures continuous choke feeding of the jaw chamber for consistent throughput.
• High-power electric drive provides precise chamber control and reverse function for clearing blockages and aiding demolition/recycling tasks.
• T-Link telematics hardware and software fitted as standard with a complimentary initial data subscription period.

Hopper / feeder

• Hopper capacity: 9 m³ (11.7 yd³).
• VGF feed height: 3.98 m (12'11").
• VGF rear feed width: 2.67 m (8'9").
• Hydraulically folding sides and rear for transport.

Bypass conveyor (optional)

• Belt width: 650 mm (26").
• Hydraulically folding for transport.
• Standard discharge height: ~2.1 m (7').
• Stockpile capacity: 36.3 m³ (47.5 yd³) at 40°.

Jaw chamber

• Terex JW42 single-toggle jaw chamber.
• Feed opening: 1070 mm x 760 mm (42" x 30").
• Nominal jaw clearance underlay: 460 mm.
• Full hydraulic closed-side setting adjustment.

Magnetic separator (optional)

• Belt width: 750 mm (30").
• Hydraulic drive.

Main conveyor

• Belt width: 1000 mm (40").
• Standard discharge height: ~3.6 m (11'10") with standard conveyor.
• Impact bars and wear-resistant liners at feed point.
• Stockpile capacity: 69.4 m³ (90.8 yd³) at 40°.

T-Link telematics
T-Link telematics hardware and software are fitted as standard, enabling remote monitoring, location tracking and operational data access; an initial complimentary data subscription is included as specified for the product.

Documents & media
Product brochure (PDF) and technical documentation available for download.

Main specifications
Net engine power: Tier 2 Equivalent - Scania 350 hp | Stage V - Scania DC9 345 hp (Tier 2 Equivalent - Scania 261 kW | Stage V - Scania DC9 257 kW). Feed opening: 42" x 30" / 1070 mm x 760 mm. Operating weight: ~54,300 kg (119,711 lbs). Transport dimensions (approx.): H 3.5 m x W 2.9 m x L 14.5 m. Working dimensions (approx.): H 3.9 m x W 6.2 m x L 15.7 m.

Technical characteristics / specifications

• Model: J-1175 (Hybrid version).
• Brand: Terex Finlay.
• Type: Portable jaw crusher, dual-power configuration.
• Jaw chamber: Terex® JW42 single-toggle.
• Feed opening: 1070 x 760 mm (42" x 30").
• Hopper capacity: 9 m³.
• Main conveyor width: 1000 mm (40").
• Bypass conveyor (optional): 650 mm (26").
• Magnetic separator (option): 750 mm (30").
• Operating weight: ~54,300 kg.
• Transport dimensions (approx.): H 3.5 m x W 2.9 m x L 14.5 m.
• Working dimensions (approx.): H 3.9 m x W 6.2 m x L 15.7 m.
• Controls: Advanced electronic control system with reverse functionality for blockage clearing.
• Telematics: T-Link integrated (hardware/software and initial data subscription included as standard).
