Jaw crusher J-1160

mobilecrawlercompact

Product overview

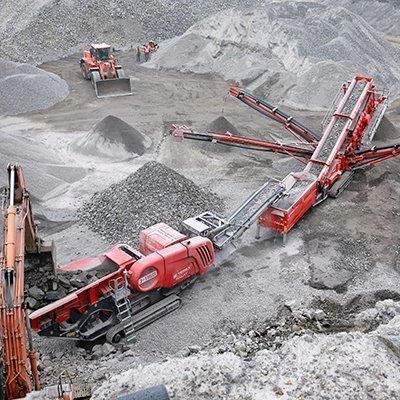

The J-1160 is a track-mounted mobile primary jaw crusher engineered for primary crushing in quarry, demolition and recycling applications. It incorporates a Terex 1000 x 600 mm (40 x 24 in) single-toggle jaw chamber with a hydrostatic drive that provides variable crushing speed and full reverse capability to clear blockages. The design targets lower operating costs and fuel-efficient operation for small to medium-sized operators.

Key features

• Hydrostatic-driven single-toggle jaw chamber for high capacity and large reduction ratios.
• Automatic variable-speed Vibrating Grizzly Feeder (VGF) ensures continuous choke feeding for consistent throughput.
• High-power hydrostatic drive with full reverse function for blockage clearance and precise chamber control.
• Fully hydraulic closed side setting (CSS) adjustment reduces downtime and enables quick changes.

Main components / options

• Jaw chamber: Terex single-toggle 1000 x 600 mm; nominal under-jaw clearance 540 mm; hydraulic CSS adjustment; full reverse action.
• Hopper / Feeder: 5 m³ hopper; standard feed height 3.4 m (with extensions 3.7 m); VGF variable speed 450–850 rpm; hydraulic folding and locking hopper extensions.
• Main conveyor: 900 mm belt width; working angle ~25°; discharge height ~3.5 m; impact bars and wear-resistant liners at feed point.
• By-pass conveyor: 650 mm belt width; working angle ~22°; hydraulically folds for transport; discharge height ~2.1 m; stockpile capacity ~12 m³ @ 40°.
• Magnetic (optional): 750 mm belt, hydraulic drive.
• Undercarriage: 400 mm shoe width; dual-speed tracking with soft start; gradeability approx. 30°.
• T-Link Telematics: telematics hardware and seven-year data subscription included for remote monitoring and fleet management.

Applications

• Primary crushing for quarry and aggregate production.
• Demolition and recycling sites, with reverse action to clear blockages.
• Small to medium contractor operations requiring mobile, fuel-efficient primary crushing with low cost per tonne.

Technical specifications

• Jaw chamber: 1000 x 600 mm (40 x 24 in).
• Jaw inlet gape: 600 mm (24 in).
• Under jaw clearance: nominal 540 mm.
• Maximum CSS: 145 mm; Minimum CSS: 40 mm (demolition/recycling) / 50 mm (quarry).
• Drive type: Hydrostatic drive with full reverse capability.
• Hopper capacity: 5 m³; feed heights: 3.4 m (standard) / 3.7 m (with extensions).
• VGF speed range: 450–850 rpm.
• Main conveyor belt width: 900 mm; discharge height ~3.5 m; stockpile capacity approx. 60 m³ @ 40°.
• By-pass conveyor belt width: 650 mm; discharge height ~2.1 m; stockpile capacity approx. 12 m³ @ 40°.
• Optional magnetic separator belt width: 750 mm.
• Undercarriage shoe width: 400 mm; gradeability ~30°; dual-speed tracking with soft start.
• Engine net power (examples): Tier 3 - John Deere 284 hp | Tier 4 Final / Stage V - CAT 275 hp.
