Jaw crusher LJ-130

mobileprimaryelectric

Overview

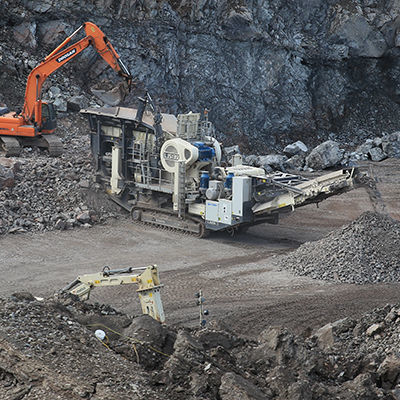

The Finlay® LJ-130 is a mobile hybrid jaw crusher developed for large-scale quarrying and mining. It can operate as a standalone primary crusher or be integrated into mobile or static crushing and screening plants. The unit accepts on-board genset powerpack operation or connection to external electrical supply, delivering operational cost and maintenance advantages over diesel/hydraulic powertrains.

Key features

• Electric drive systems for reduced operating costs and improved environmental performance.
• Large feed width and gape (1300 x 1000 mm) to accept larger, coarser material and reduce oversize hammering.
• Automatic variable-speed VGF (vibrating grizzly feeder) for continuous choke feeding and optimal throughput.
• High-power electric drive with reversible chamber control to clear blockages; suited to construction demolition, asphalt and recycling applications.
• Standard T-Link telematics hardware and software with a free seven-year data subscription.

Hopper & feeder

• Hopper capacity approx. 13.5 m3; hopper length 6.1 m; feed height 5.9 m (without extensions) / 6.35 m (with extensions).
• Hydraulic hopper lock operable from ground level for safe transport and maintenance.

Main conveyor

• Belt width 1.4 m; working angle 21°; discharge height approx. 4.2 m under drum.
• Hydraulically folding head section for transport and impact bars/wear liners at feed point.

Jaw chamber

• Terex TJ3951 single-toggle jaw chamber with 1300 x 1000 mm feed opening.
• CSS (closed side setting) variable approx. 125–250 mm; variable-speed electric drive and reversible function for blockage clearing.

Options & access

• Optional bypass conveyor, magnetic separator and various side conveyor configurations.
• Galvanized walkways and access platforms around power unit, chamber and hopper for maintenance.

Technical specifications (selection)

• Model: LJ-130
• Net power examples: Tier 3 - CAT 540 hp | Tier 4 Final / Stage V - Scania 550 hp (alternatively expressed in kW on data sheet)
• Feed opening: 1300 x 1000 mm (51” x 39”)
• Operational weight: ~123,000 kg (271,169 lbs)
• Transport dimensions (approx.): Height 4.25 m | Width 3.4 m | Length 17 m
• Working dimensions (approx.): Height 6.4 m | Width 7.3 m | Length 21.8 m
• Hopper capacity: 13.5 m3
• Main belt width: 1.4 m
• CSS range: 125–250 mm
• Telematics: T-Link fitted with 7-year data subscription
