Jaw crusher J-960

mobilecrawlercompact

Overview

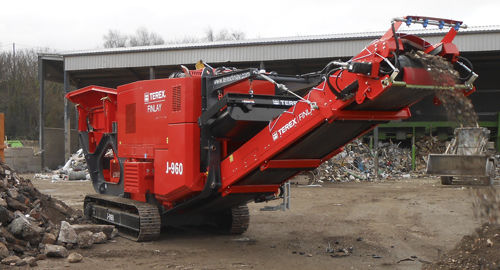

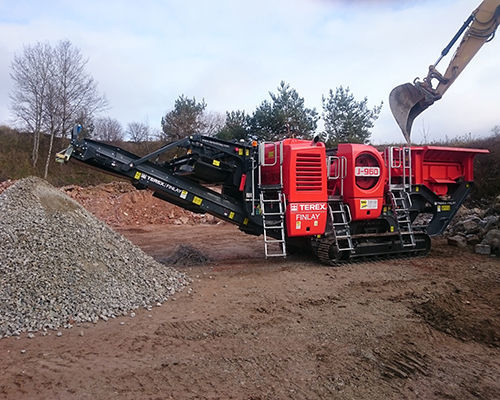

The Finlay J-960 is a portable jaw crusher featuring a Terex 900 x 600 mm (35" x 24") direct-drive single toggle jaw chamber designed for high capacity and large reduction ratios. Redesigned access points improve preventative maintenance and serviceability. Its compact mobility and high crushing capacity at tight settings make it suitable for small to medium operators in recycling and hard rock applications.

Key Features

• Direct-drive jaw chamber with reverse/unblock function to maximize uptime.
• Full hydraulic wedge adjustment for quick on-site closed side setting (CSS) changes.
• Redesigned main conveyor with increased under-jaw clearance to reduce restrictions in recycling operations.
• Improved service access points for easier preventive maintenance.

Hopper / Feeder

• Hopper capacity: 3.6 m³ (4.7 yd³).
• Feed height (standard hopper): 3.20 m (10'5").
• Vibrating Grizzly Feeder (VGF) fitted; standard grizzly aperture: 50 mm.
• VGF speed range: variable, 500–915 rpm.

Jaw Chamber

• Terex 900 x 600 mm (35" x 24") single toggle jaw crusher.
• Direct drive via wedge belts with reverse action for clearing blockages.
• Full hydraulic closed side setting adjustment.
• Standard liner profile: Premium Tooth (≈18% manganese).

Main Conveyor

• Belt width: 800 mm (32").
• Working angle: 22°.
• Discharge height: 2.9 m (9'6").
• Impact bars and wear resistant liners at feed point; high-spec scraper at head drum.

Magnet Separator

• Belt width: 750 mm (30").
• Hydraulic drive option available.

By-pass Conveyor (optional)

• Belt width: 600 mm (24").
• Discharge height: 2.0 m (6'7").
• Hydraulically foldable for transport.

T-Link Telematics

• T-Link hardware and software fitted as standard on many machines; provides remote monitoring, diagnostic and operational data to optimise utilisation.

Technical specifications

• Net engine power: Tier 3 John Deere 169 hp | Tier 4 Final / Stage V CAT 173 hp (approx. 126 kW / 129 kW).
• Feed opening: 35" x 24" / 900 x 600 mm.
• Operating weight: 61,730 lbs / 28,000 kg.
• Transport dimensions: H 10'6" x W 7'10" x L 40'8" (H 3.2 m x W 2.4 m x L 12.4 m).
• Working dimensions: H 10'6" x W 12'6" x L 40'8" (H 3.2 m x W 3.8 m x L 12.4 m).
