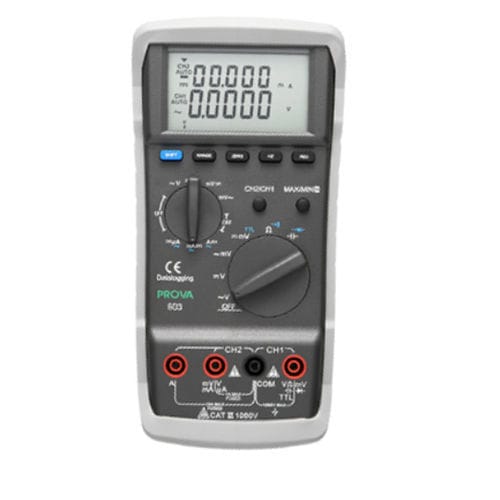

Digital multimeter PROVA-803portable1000 V10 A
Add to favorites
Compare this product
Characteristics
- Display
- digital
- Form
- portable
- Max voltage
- 1000 V
- Max current
- 10 A
- Safety rating
- cat III
- Additional features
- frequency
- Other characteristics
- AC/DC, with PC interface
- Max DC voltage
1,000 V
- Max AC voltage
1,000 V
- Max DC current
10 A
- Max AC current
10 A
- Max resistance measure
40,000 kOhm
- Max capacity measure
490 µF
- Max frequency measure
2 MHz
- Max DC voltage resolution
0.1 V
- Max AC voltage resolution
0.1 V
- Max DC current resolution
1 mA
- Max AC current resolution
1 mA
- Max resistance resolution
1 kOhm
- DC voltage precision
0.1 %, 0.2 %
- AC voltage precision
0.2 %
- DC current precision
0.2 %, 0.4 %, 0.6 %
- AC current precision
0.6 %, 0.9 %
- Resistance precision
0.25 %, 0.3 %, 1.5 %
- Process temperature
Min.: -10 °C
(14 °F)Max.: 40 °C
(104 °F)- Length
207 mm
(8.15 in)- Width
101 mm
(3.98 in)- Height
47 mm
(1.85 in)- Weight
430 g
(15.17 oz)
Description
60,000 counts and dual input channels
0.1% DC voltage basic accuracy and 0.2% AC voltage basic accuracy
Bandwidth of 10KHz (max.)
Fast ACV, ACA response
Better AC accuracy than that of a bench-top DMM
More functions than those of a bench-top DMM
Much lower cost than that of a bench-top DMM
Study the relationship of two voltages similar to a dual channels DSO
Study of relationship of voltage and current with one DMM
Dual display of frequency and duty cycle
Record data of both channels using a PC through the RS-232C interface
Standalone data logging of 10708 records for both channels
