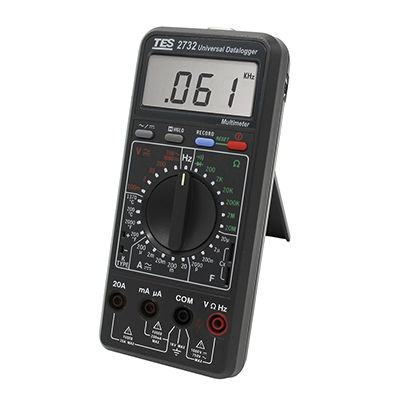

Digital multimeter TES-2732
portable1000 V20 A

Digital multimeter - TES-2732 - TES Electrical Electronic Corp. - portable / 1000 V / 20 A
Digital multimeter - TES-2732 - TES Electrical Electronic Corp. - portable / 1000 V / 20 A
Digital multimeter - TES-2732 - TES Electrical Electronic Corp. - portable / 1000 V / 20 A - image - 2
Add to favorites
Compare this product
Go to the TES Electrical Electronic Corp. website for more information

Characteristics

Display
digital
Form
portable
Max voltage
1000 V
Max current
20 A
Additional features
with thermometer, with data logger
Applications
laboratory
Other characteristics
AC/DC
Max DC voltage

1,000 V

Max AC voltage

750 V

Max DC current

20 A

Max AC current

20 A

Max resistance measure

20,000 kOhm

Max capacity measure

20 µF

Max frequency measure

10 MHz

Max DC voltage resolution

1 V

Max AC voltage resolution

1 V

Max DC current resolution

10 mA

Max AC current resolution

10 mA

Max resistance resolution

10 kOhm

DC voltage precision

0.5 %

AC voltage precision

1 %, 1.2 %

DC current precision

1 %, 1.2 %

AC current precision

1.2 %, 1.5 %

Resistance precision

0.8 %, 1.5 %

Process temperature

Max.: 60 °C
(140 °F)

Min.: -10 °C
(14 °F)

Length

180 mm
(7.09 in)

Width

82 mm
(3.23 in)

Height

38 mm
(1.5 in)

Weight

365 g
(12.87 oz)

Description

Easy Data Acquisition (Field/Laboratory) DMM talks with P.C. via RS-232 interface Data Logger function for Field recording without P.C. can record up to 4048 data Direct input of V, A, Ohm, Hz, Cx & °C/°F without any further signal modification Go/No Go (alarm output) used for control purpose Display: 3 1/2 Digital LCD Display Maximum Reading 1999. Sampling Rate: 2.5 readings per second Operating/Storage Condition: 0°C to 40°C<80% R.H. -10°C to 60°C<70% R.H. Power Source: one 9V Battery Battery Life Approx. 60hours (Alkaline Battery) 9V Power adaptor jack for long time application Size & Weight: 180(L)×82(W)×38(H)mm & 365g Accessories: Test leads ( pair), Spare fuse (0.5A/ 250V ), Battery, Instruction manual, Software, RS-232 Cable, “K” type thermocouple (TP-K01).
Go to the TES Electrical Electronic Corp. website for more information
