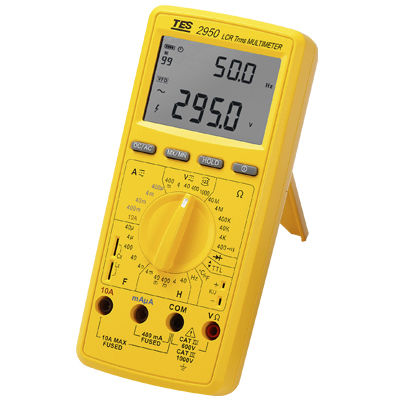

Digital multimeter TES-2950portable
Add to favorites
Compare this product
Characteristics
- Display
- digital
- Form
- portable
- Max DC voltage
4 V, 400 V, 400 V, 1,000 V
- Max AC voltage
4 V, 40 V, 400 V, 400 V, 1,000 V
- Max DC current
0.4 mA, 4 mA, 10 mA, 40 mA, 400 mA
- Max AC current
0.4 mA, 4 mA, 10 mA, 40 mA, 400 mA
- Max resistance measure
Min.: 400 Ohm
Max.: 40,000,000 Ohm
- Max capacity measure
4 nF, 4 nF, 40 nF, 40 nF, 400 nF
- Max frequency measure
4 kHz, 40 kHz, 400 kHz, 4,000 kHz
- Max DC voltage resolution
0.1 mV, 1 mV, 1 mV, 10 mV
- Max AC voltage resolution
0.1 mV, 1 mV, 1 mV, 10 mV, 100 mV
- Max DC current resolution
0.0001 mA, 0.001 mA, 0.01 mA, 0.1 mA, 10 mA
- Max AC current resolution
0.0001 mA, 0.001 mA, 0.01 mA, 0.1 mA, 10 mA
- Max resistance resolution
Max.: 10 kOhm
Min.: 0.0001 kOhm
- DC voltage precision
0.5 %
- AC voltage precision
1 %
- DC current precision
1 %
- AC current precision
1.5 %
- Resistance precision
0.5 %, 1.5 %
- Process temperature
Min.: -40 °C
(-40 °F)Max.: 200 °C
(392 °F)
Description
Variable-frequency drive (VFD) V & Hz measurement.
Data hold, Auto hold & Peak hold mode.
Max/Min/Avg record mode.
Relative value display.
Frequency Count (Auto-Ranging).
Temperature type K, J measurement.
Inductance & Capacitance measurement.
20MHz TTL logic check.
Other TES Electrical Electronic Corp. products

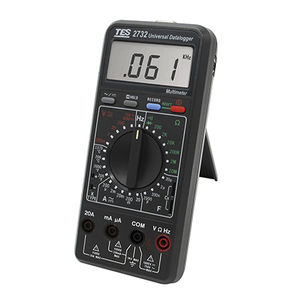

Multimeter
