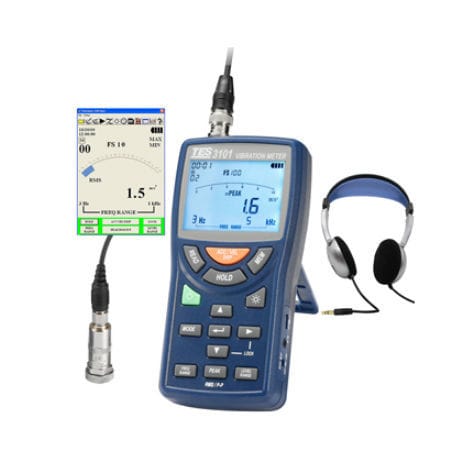

Machine monitoring vibration meter TES-3101

portabledigitalaccelerometer

Measures acceleration, Velocity and displacement RMS, EQ PEAK and EQ P-P measurement Wide range of vibration measurement by using different sensitivity of accelerometers Backlight LCD display Auto memory micro SD card , USB interface to PC Earphone output for detecting noise in machine components Excellent accelerometer for harsh environments Maximum/Minimum record function Manual memory stores up to 99 data SPECIFICATIONS Piezoelectric Accelerometer (PA-01) Sensitivity 5mV/(m/s²)(±10%) Acceleration range 200m/s² Amplitude nonlinearity ±1% Frequency response 5Hz to 10kHz (±10%), 10kHz to 15kHz (±3dB) Resonance frequency 27kHz Transverse sensitivity ≦5% Dimensions/Weight 46(H) x 19(D) mm / 46g Frequency range ACC (Acceleration) 3Hz to 1kHz, 3Hz to 5kHz, 1Hz to 100Hz, 3Hz to 20kHz VEL (Velocity) 10Hz to 1kHz, 3Hz to 1kHz DISP (Displacement) 1Hz to 500Hz, 3Hz to 500Hz Measurement full-scale range For accelerometer PA-01 and accelerometers with sensitivity 1.0 to 9.9mV/(m/s²) ACC (Acceleration) 1, 10, 100, 1000m/s² VEL (Velocity) 10, 100, 1000mm/s DISP (Displacement) 0.1, 1, 10, 100mm Indication characteristics Acceleration RMS, EQ PEAK Velocity RMS, EQ PEAK Displacement RMS, EQ PEAK, EQ p-p Gain calibration (Accelerometer sensitivity selection establishes suitable gain) Setting range 0.10 to 0.99, 1.0 to 9.9, 10 to 99mV (m/s²) Ambient conditions for operation Accelerometer -20 to +70°C, max. 90%RH Main unit -10 to +50°C, max. 90%RH Manual memory Maximum 99 data can be stored manually Auto memory Micro SD CARD Power requirements 4 IEC R6 (size AA) batteries, AC adapter 6V (option)
