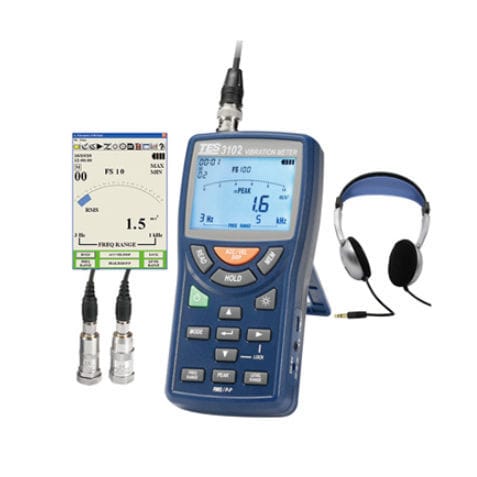

Machine monitoring vibration meter TES-3102

portabledigitalaccelerometer

Measures acceleration, Velocity and displacement RMS, EQ PEAK and EQ P-P measurement Wide range of vibration measurement by using different sensitivity of accelerometers PA-01 & PA-02 Accelerometer can be change use Backlight LCD display Auto memory micro SD card 4GB, USB interface to PC Maximum/Minimum record function Excellent accelerometer for harsh environments Earphone output for detecting noise in machine components Manual memory stores up to 99 data SPECIFICATIONS: Piezoelectric Accelerometer (PA-01) Sensitivity 5mV/(m/s²)(±10%) Acceleration range 200m/s² Amplitude nonlinearity ±1% Frequency response 5Hz to 10kHz (±10%), 10kHz to 15kHz (±3dB) Resonance frequency 27kHz Transverse sensitivity ≦5% Dimensions/Weight 46(H) x 19(D) mm / 46g Piezoelectric Accelerometer (PA-02) Sensitivity 10mV/(m/s²)(±10%) Acceleration range 100m/s² Amplitude nonlinearity ±1% Frequency response 5Hz to 3kHz (±10%), 3kHz to 5kHz (±3dB) Resonance frequency 20 kHz Transverse sensitivity ≦5% Dimensions/Weight 52(H) x 22(D) mm / 72 g Frequency range ACC (Acceleration) 3Hz to 1kHz, 3Hz to 5kHz, 1Hz to 100Hz, 3Hz to 20kHz VEL (Velocity) 10Hz to 1kHz, 3Hz to 1kHz DISP (Displacement) 1Hz to 500Hz, 3Hz to 500Hz Measurement full-scale range For accelerometer PA-01 and accelerometers with sensitivity 1.0 to 9.9mV/(m/s²) ACC (Acceleration) 1, 10, 100, 1000m/s² VEL (Velocity) 10, 100, 1000mm/s DISP (Displacement) 0.1, 1, 10, 100mm Indication characteristics Acceleration RMS, EQ PEAK Velocity RMS, EQ PEAK Displacement RMS, EQ PEAK, EQ p-p
