Adhesive tape applicator 6068

Product description

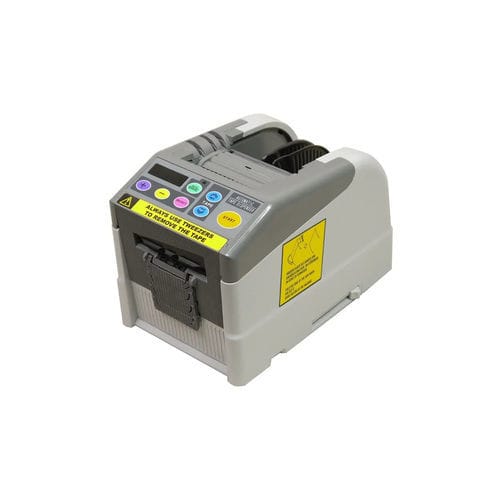

tesa® 6068 is a fully automatic bench tape dispenser with preset length, piece counter and a photo-sensor cutter. It is compatible with most tesa® self-adhesive tapes up to 60 mm width, in particular TPP, filament and cloth-backed tapes. Single- and double-sided tapes (including liner up to 1.5 mm) can be processed; liners of double-sided tapes must be removed manually after dispensing.

Product features

• Digital display with memory for preset length
• Preset length range: 5–999 mm
• Piece counter and storage of cut quantity
• Photo-sensor controlled cutter for precise dispensing
• Accepts tape width up to 60 mm and liner thickness up to approx. 1.5 mm
• Automatic drive, max. roll diameter 300 mm, core diameter 3

Application fields

• Release the roller lock lever and place the tesa® roll into the adjustable tape holder.
• Feed the tape using the FORWARD button and fix it with the hold-down roller unit and tape holder.
• Set the desired length with SET A and SET B (range 5–999 mm).
• Set the required number of pieces with the SELECT button.
• Press START to deliver and cut the tape; for double-sided tape remove liner manually.

Technical specifications

• Application purpose: multifunctional
• Supported tape width: up to 60 mm
• Length presetting range: 5–999 mm
• Mode of drive: automatic
• Max. roll diameter: 300 mm
• Max. supported thickness (incl. liner): approx. 1.5 mm
• Weight: 2,500 g
• Core diameter: 3
