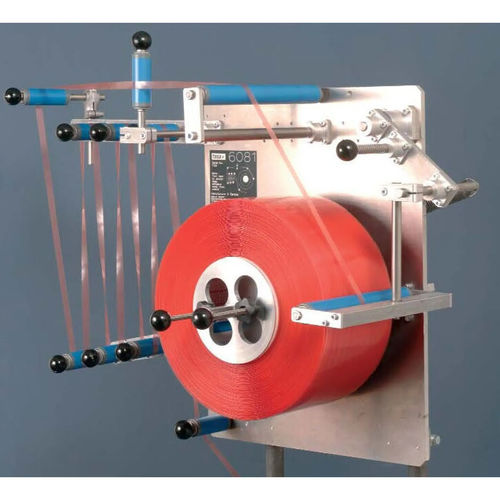

Adhesive tape dispenser 6081

tapeintermittent-motioncontinuous-motion

Product Features

• Controlled unwinding from spools; precise tape guiding to the lamination unit without damage.
• Brake and buffer system supports high lamination speeds and compensates line speed variations (e.g., during cutting).
• Simple operation and short set-up time for efficient processes.

Product descriptionLaminate trims and profiles continuously with double-sided tape at high speed or in stop-and-go processes. The spool dispenser is mechanically driven by the profile propulsion and is delivered ready-to-run without electrical components.

Application FieldsUsed worldwide by manufacturers of aluminium profiles, MDF trims and magnetic strips for reliable tape application in continuous and intermittent lamination processes.

Additional Info

• Easy mounting and retrofit to existing production lines.
• Configurable for left-hand or right-hand production direction.
• Tape unwinding is driven mechanically by the profile propulsion.
• Delivered ready-to-run without any electrical components.
• Product manual includes drawings and spare parts list; the brake belt may require replacement over time.

Technical specifications

• Bottom plate size: 900 mm
• Roll width max.: 250 mm
• Core diameter: 6 mm
• Weight: 22,000 g
• Max. roll diameter: 400 mm
• Application purpose: spool application
