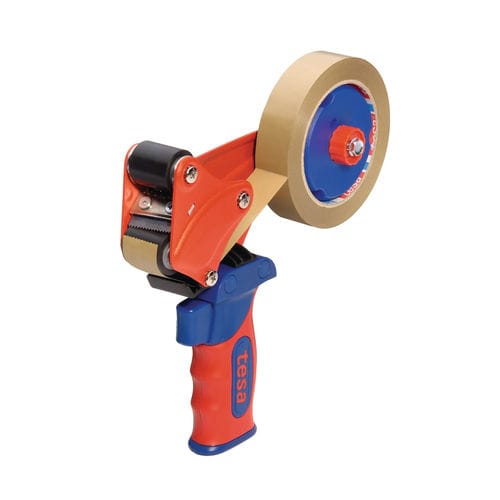

Tape dispenser 6005

manualsecure

Product overview
The tesa® 6005 hand dispenser is a robust yet lightweight device designed for manual application and cutting of adhesive tape. It accepts rolls up to 25 mm width and features a continuously adjustable tension control and an adjustable brake for tight strapping.

Key features

• Accepts tesa® adhesive tapes up to 25 mm width
• System of 2 application rollers for easy handling and consistent tape pressure
• Special blade protection for operator safety
• Trigger-operated tape cutting for one-handed use
• Soft gummed handle for a secure, comfortable grip
• Continuously adjustable tension control and adjustable brake

Application / Usage

• Place the tesa® 6005 on the carton and pull it towards you; the tape unwinds and is pressed down by the two rubber contact rollers.
• To cut the tape, press the trigger and continue moving the dispenser to complete the cut.
• Threading: Place the tesa® roll on the tape hub with the adhesive side facing the handle, open the return stop and fix it at the trigger, pull the tape between the guide roller and the return stop, then press the trigger to close the return stop; the dispenser is ready for use.

Technical data
Weight: 530 g
Max. roll diameter: 170 mm
Core diameter: 3
Roll width max: 25 mm

Specifications

• Model: tesa® 6005
• Designed for professional packing and sealing applications
• Adjustable brake for tight strapping
• Concealed blade for injury protection
