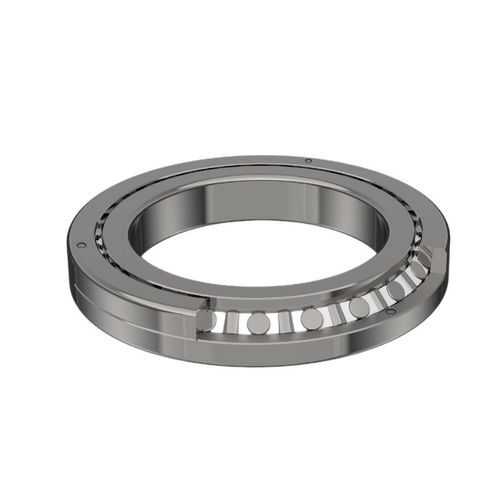

Crossed roller bearing RB Seriescylindrical rollerradialaxial
Add to favorites
Compare this product
Characteristics
- Rolling element
- cylindrical roller, crossed roller
- Configuration
- radial, axial
- Material
- steel
- Other characteristics
- high-speed, precision
- Applications
- automotive, turntable, for wind turbines, for machinery
- Inside diameter
Max.: 1,250 mm
(49.21 in)Min.: 20 mm
(0.79 in)- Outside diameter
Max.: 1,500 mm
(59.06 in)Min.: 36 mm
(1.42 in)- Width
Max.: 110 mm
(4.331 in)Min.: 8 mm
(0.315 in)
Description
RB Type (with two outer semi-rings and an inner ring)
The RB series are the basic type of the crossed cylindrical roller bearings. The dimensions of their inner and outer rings are minimized. Each outer ring is two semi-rings that are fixed with bolts or special rivets. Each inner ring has a one-piece design. The series are suitable for parts which require high rotation accuracy of inner rings, such as the rotating parts of the indexing workbenches of machine tools.
Catalogs
Crossed roller bearing
42 Pages
