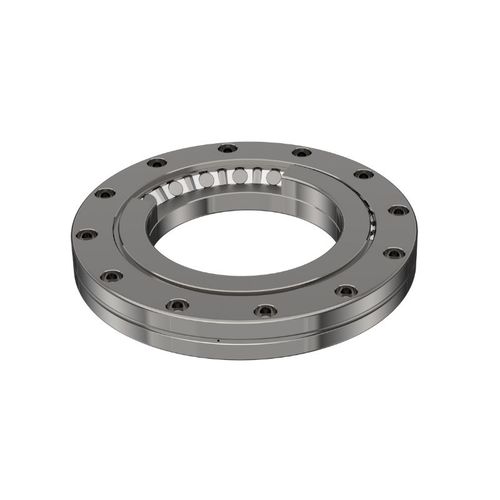

Crossed roller bearing XV seriescylindrical rollerradialaxial
Add to favorites
Compare this product
Characteristics
- Rolling element
- cylindrical roller, crossed roller
- Configuration
- radial, axial
- Material
- steel
- Applications
- for industry, automotive, turntable
- Other characteristics
- high-speed, precision
- Inside diameter
Max.: 110 mm
(4.33 in)Min.: 30 mm
(1.18 in)- Outside diameter
Max.: 180 mm
(7.09 in)Min.: 75 mm
(2.95 in)- Width
Max.: 23 mm
(0.906 in)Min.: 15 mm
(0.591 in)
Description
XV Type (with two inner semi-rings and an outer ring with a mounting hole)
The outer ring of XV series has a one-piece design with a mounting hole. The inner ring has two semi-rings. And there is a dustproof fixing metal ring between the inner and outer rings to protect the product from dust and ensure the integration of both inner and outer rings. It is convenient to mount them. The series are suitable for parts which require high rotation accuracy of outer rings.
Catalogs
No catalogs are available for this product.
