Crossed roller bearing SX seriescylindrical rollerradialaxial
Add to favorites
Compare this product
Characteristics
- Rolling element
- cylindrical roller, crossed roller
- Configuration
- radial, axial
- Material
- steel
- Applications
- for industry, for automobiles, turntable
- Other characteristics
- high-speed, precision
- Inside diameter
Max.: 500 mm
(19.69 in)Min.: 70 mm
(2.76 in)- Outside diameter
Max.: 620 mm
(24.41 in)Min.: 90 mm
(3.54 in)- Width
Max.: 56 mm
(2.205 in)Min.: 10 mm
(0.394 in)
Description

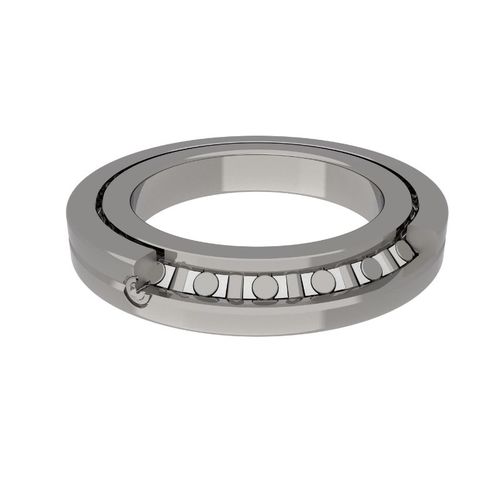

SX Type (with two outer semi-rings and an inner ring)
The dimensions of the inner and outer rings of SX series are minimized. Each outer ring has two semi-rings that are fixed with a radial connecting ring, and each inner ring is of one-piece design. The series are suitable for parts which require high rotation accuracy of inner rings, such as the rotating parts of the indexing workbenches of machine tools.
