Checkweigher for industrial applications Global Versa GP

for stainless steelframefor checkweighers

Product overview

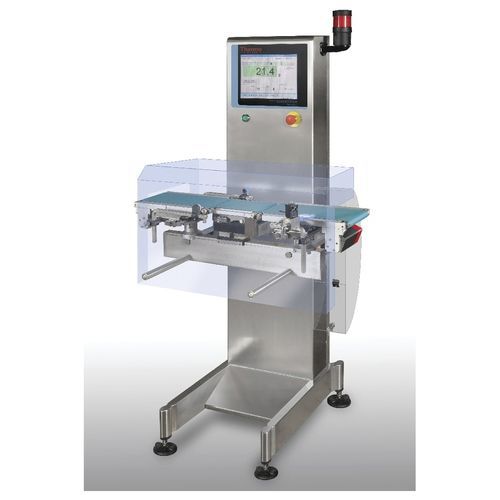

The Thermo Scientific™ Global Versa GP checkweigher is a versatile general-purpose checkweigher designed to deliver high accuracy and increased line speeds. It can inspect at line speeds up to 350 packages per minute while maintaining precision. The Versa GP incorporates over 10 engineering and feature enhancements to reduce maintenance and total cost of ownership. The unit features a compact cantilever frame with adjustable height and is suitable for packages up to 3 kg (6.6 lb).

Key features

• Suitable for food, pharmaceutical and consumer goods industries
• Cantilever frame allows line height adjustment from 635 mm to 1,145 mm on each system
• Global parts availability and service support
• On-screen language options: German, English (UK and US), Chinese, Croatian, Spanish, French, Italian, Latvian, Dutch, Polish, Portuguese, Russian, Slovenian, Czech and Turkish
• Complies with or exceeds a range of regional and international standards and is OIML MID approved
• Proprietary software with advanced auto-zero algorithms maintains accuracy over time regardless of environment
• Hygienic design
• Frames engineered to minimise flat surfaces and gaps to reduce food build-up
• Stainless steel conveyor beds
• Optional stainless steel rollers and load sensors
• Quick-release conveyors and belts eliminate the need for tools for removal or replacement
• Tool-free belt guide adjustment screw
• Easy-to-adjust captive conveyor rollers
• High-torque, sealed brushless motors for smooth operation and high MTBF
• Easy-to-read color touchscreens
• Configurable secure access levels
• Intuitive menu navigation
• Exclusive “Weighing Engine” uses Thermo Scientific™ AutoCalc™ signal processing to simplify product setup

Product reference
Reference: PID-10144546
Description: Global Versa GP checkweigher

Technical specifications

• Accuracy: Up to +/-0.1 g at 2 sigma (product/speed dependent)
• Air supply: Dry, 5.5 to 6.9 bar (80 to 100 psi)
• Description: Global Versa GP checkweigher
• Power supply: 90 to 250 VAC, 50/60 Hz
• Frame: Stainless steel
• Line height (imperial): 24.8 to 45.3 in
• Line height (metric): 630 to 1,150 mm
• Operating temperature: 0° to 40°C (32° to 104°F)
• Product type: Global Versa GP Checkweigher
• Relative humidity: 20 to 90% non-condensing
• Weight range (metric): 5–1500 g
• Detector scan speed: Up to 300 ppm
• Display type: Color touchscreen
• Washdown option: Yes - IP65
• Unit size: Each
