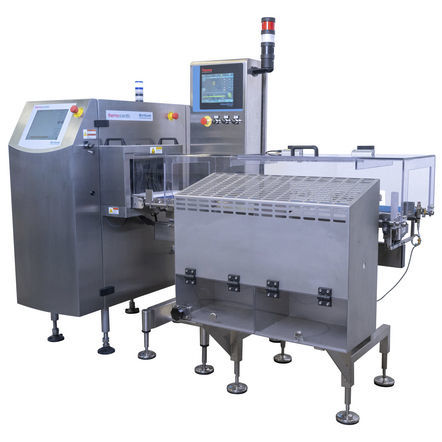

X-ray inspection machine NextGuard C330

packaging linefor the packaging industrybelt conveyor

Overview
Add leading x-ray inspection technology to flexible checkweighing solutions to minimize space and integrate operation. The NextGuard is ideal for finding dense or sharp objects in a wide variety of products as well as detecting errors like over/under fill or missing, misplaced, cracked, or incorrectly formed products. The Versa checkweigher has proprietary software with advanced automatic-zero algorithms to ensure accuracy standards are maintained over time, regardless of environment, and is engineered for ease of maintenance.

Features and benefits

• Single point of operation for personnel
  • The x-ray inspection combined with the checkweigher enables both systems to be monitored by the employee on the production floor without needing to move between two systems.
  • Reduces safety risk to the operator as the reject systems of both the x-ray system and checkweigher system are located next to each other.
• Single point for maintenance
  • Set-up and calibration of the x-ray and checkweigher systems can be done together at the same time.
• Space saving
  • Combination system can save from 200 cm to 1,000 cm in packaging line length versus separate systems.
• Budget saving
  • Shared conveyor belt for x-ray and checkweigher eliminates need for an extra conveyor, reducing hardware cost.
• Single point for quality control
  • Rejection of out-of-range weight and contaminated products are side by side for easy removal.
  • Each system has its own HMI control screen and both are visible from a single point allowing simultaneous review of real time data.
  • X-ray belt can help pull pitch of products, regulating product presentation onto the checkweigher.

X-ray inspection available as combos
NextGuard C330 X-ray inspection as combo
Sensitivity: Very high
Case width: 340 mm
Technology: X-ray inspection; product verification; mass estimation
Shielding curtains: Standard or thin-slit
HMI Screens: Both are visible from a single point allowing simultaneous review of real time data from both systems
Cleaning: IP65 with air conditioner; IP54 with fan

Checkweigher combination units
VersaWeigh checkweigher
Design: Widest application range
Weight range: 10 g to 10 kg weighing range, high accuracy
Throughput: Up to 400 packs per minute throughput (pack rates dependent upon package length, weigh table length and data output/archiving)
Material handling: Belt
Cleaning: Light wash down, IP65

Versa GP checkweigher
Design: Cantilever design
Weight range: 10 g to 3 kg weighing range, ultra-high accuracy
Throughput: Up to 400 packs per minute throughput (pack rates dependent upon package length, weigh table length and data output/archiving)
Material handling: Belt
Cleaning: Light wash down, IP65

Resources (examples available)
Brochure: Product inspection solutions
Application note: Thermo Scientific x-ray inspection and checkweigher combination unit

Caractéristiques / spécifications techniques

• Product family: X-ray inspection + checkweigher combination units integrating NextGuard x-ray and Versa checkweigher
• X-ray model highlighted: NextGuard C330
• Case width (NextGuard C330): 340 mm
• Sensitivity (NextGuard C330): Very high
• Technology: X-ray inspection, product verification, mass estimation, inline weighing
• Shielding curtains options: Standard or thin-slit
• HMI: Separate HMI for each system but both visible from a single point
• Cleaning rating: IP65 with air conditioner; IP54 with fan (x-ray); Checkweighers: Light wash down, IP65
• VersaWeigh weight range: 10 g to 10 kg; Versa GP weight range: 10 g to 3 kg
• Throughput: Up to 400 packs per minute (dependent on package and system configuration)
• Material handling: Belt conveyors (shared conveyor used as infeed for checkweigher)
