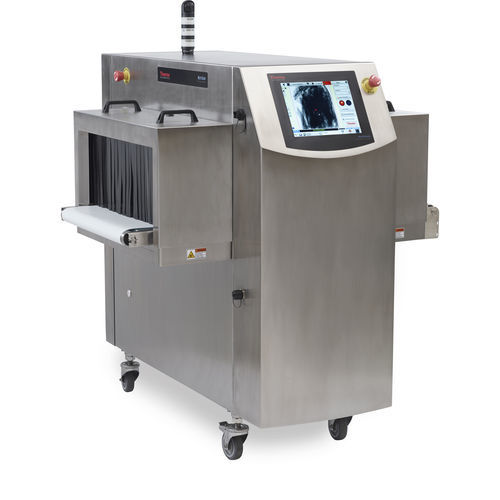

Scanning inspection system NextGuard™

X-ray

Product overview
Find metallic and non-metallic foreign objects and eliminate wet product effects common with metal detectors with the Thermo Scientific™ NextGuard™ X-ray Detection Systems. Designed for a wide variety of food applications, NextGuard systems inspect packaged products for missing pieces or components, under- and over-fills, and other quality problems with customizable vision software. Both the Conveyor and C500 models are easy-to-use, cost effective and thoughtfully designed systems to support migration from metal detection to X-ray inspection.

New and improved NextGuard X-ray Detection System Features

• Product verification software option allows users to execute a wide range of size, position and count inspections.
• Pack division software allows precise detection of a missing product, or partial missing product, within stacked packaging.
• Additional algorithms target detection of less dense contaminants such as glass or rocks in complex, textured products (e.g., nuts or tea bag boxes).
• Optional mass estimation software uses density information in the X-ray image to estimate weight and detect under/over filled products.
• Configurable for dual rejection, separating contaminated products from other quality errors.
• Standard system processor is six times faster than the first generation NextGuard system, supporting high-speed contaminant detection and improved user responsiveness.
• Optional 0.4 mm-pixel detector offers 3.2× better resolution for improved metal detection in lightweight, homogeneous products such as powders or cheese.

Additional benefits

• Compact size for easy installation and use.
• Unique non-linear detector to eliminate inspection blind spots.
• Removable conveyor for simple directional change and maintenance.
• Intuitive Thermo Scientific™ VersaWeigh™ user interface and software.
• Modular design for high reliability and quick diagnosis and repair.
• Source and detector lifetime indicators to minimize expensive downtime.
• Built-in remote monitoring for quick problem determination.

Options to customize your system

• Complete rejection systems or rejection mechanisms for use on downstream conveyor.
• Stainless steel air conditioner for washdown environments.
• Alarm horn, no lead curtains, casters, guiderails.
• Radiation safety meters.
• CE, cCSAus certifications.
• Spare parts kits.

Available models (table)
Catalog Number | Conveyor Heights Available | Maximum Conveyable Product Weight | Radiation Safety Conformance | System/Conveyor Lengths Available
NEXTGUARDC500 | 800 mm (31.5 in.), 900 mm (35.4 in.), 1000 mm (39.4 in.), 1100 mm (43.3 in.) all ± 80 mm | 11 kg (25 lbs.) | FDA CFR 21 part 1020.40, RED act (Canada), IRR99 (UK), NCF 74-100 (France), UNE 73-302 (Spain), GB18871-2002 (China) and others. Note: UK, Canada and Spain require optional extended guarding and France requires optional extended shielding | 1.2 m (47.4 ft.)
NEXTGUARDC330 | 800 mm (31.5 in.), 900 mm (35.4 in.), 1000 mm (39.4 in.), 1100 mm (43.3 in.) all ± 80 mm | 10 kg (22 lbs.) | FDA CFR 21 part 1020.40, RED act (Canada), IRR99 (UK), NCF 74-100 (France), UNE 73-302 (Spain), GB18871-2002 (China) and others. Note: UK, Canada and Spain require optional extended guarding and France requires optional extended shielding | Standard Length 1 m (3.3 ft.), C330: Extended 1.4 m (4.6 ft.)
NEXTGUARDPRO | 800/950/1100 mm (31.5/37.4/43.3 in.) ± 75 mm (3.0 in.) | 11 kg (25 lbs.) to 50 kg (110 lbs.) | FDA CFR 21 part 1020.40, RED act (Canada) and others. Note: Canada, UK, Spain and France require additional shielding | 1.5 m (59 in) standard with optional conveyor ends extending the system 200/400/600/800/1000 mm (7.9/15.8/23.6/31.5/39.4 in) on either the infeed or outfeed ends.

caractéristiques / spécifications techniques

• Belt Material: USDA/FDA Approved Urethane
• Belt Speed: C500 (all models): 5-50 m/min (16-164 ft/min)
• Certifications / Compliance: ISO9001 certified facility
• Conveyor Heights Available: 800 mm (31.5 in.), 900 mm (35.4 in.), 1000 mm (39.4 in.), 1100 mm (43.3 in.) all ± 80 mm
• Detector Resolution: 0.8 mm standard (optional 0.4 mm pixel detector available)
• Digital Inputs: Four inputs, 24 VDC 25 mA, NPN/PNP (jumper selectable), assignable function
• Digital Outputs: Four outputs, 24 VDC 0.5 A, assignable function
• Electrical Requirements: 208 to 250 VAC, 50/60 Hz, autosensing, single phase, 10 amps
• Export / Safety Conformance: CE, cCSAus
• Human Machine Interface: Windows OS, touchscreen, 307 mm (12.1 in) diagonal
• Inspection Algorithms Available: Image processing/thresholding/blob analysis, grayscale profiling and mass estimation
• Interface Languages: English, Spanish, French, Italian, German, Chinese, Russian, Polish, Czech, Portuguese, Dutch, Thai, Indonesian (additional languages available)
• Maximum Conveyable Product Weight: 11 kg (25 lbs.)
• Network Port: Watertight Ethernet port standard
• Operating Temperature: 5°C to 30°C (41°F to 86°F) with cooling fan or 5°C to 40°C (41°F to 104°F) with air conditioner (C500 only available with air conditioner)
• Outputs: Images, event logs, statistics, audit reports, product files and machine parameters
• Radiation Safety Conformance: FDA CFR 21 part 1020.40, RED act (Canada), IRR99 (UK), NCF 74-100 (France), UNE 73-302 (Spain), GB18871-2002 (China) and others. Note: UK, Canada and Spain require optional extended guarding and France requires optional extended shielding
• Rejector: Integrated variable speed conveyors. Air blast or pusher. Lockable reject bin and reject/bin full photo sensors. Dual rejectors possible
• Relative Humidity: 20% to 90% non-condensing
• Safety Features: X-ray power key, four-level password system, emergency X-ray/conveyor stop button, lead/lead-free curtains, failsafe LED X-ray imminent and on indication light
• Sensitivity: ≥ 1 mm diameter for Fe, non-Fe, SS; ≥ 3 mm for other dense contaminants such as glass or stone (always verify application performance via a product test)
• System / Conveyor Lengths Available: 1.2 m (47.4 ft.)
• USB Port: Watertight USB 2.0 Standard
• Weight (English): 980 lbs
• Weight (Metric): 445 kg
• X-Ray Curtain Material: Teflon coated (no-lead)
• X-Ray Power: 160 W (80 kV / 2 mA) or 200 W (90 kV / 2.2 mA)
• Detection Algorithms Available: Simple Threshold, Gradient, Morphologies and Contaminant Area Measure
• Detector Scan Rate: Up to 1667 Lines/sec.
• IP Rating: IP65 with air conditioner
• Unit Size: Each
