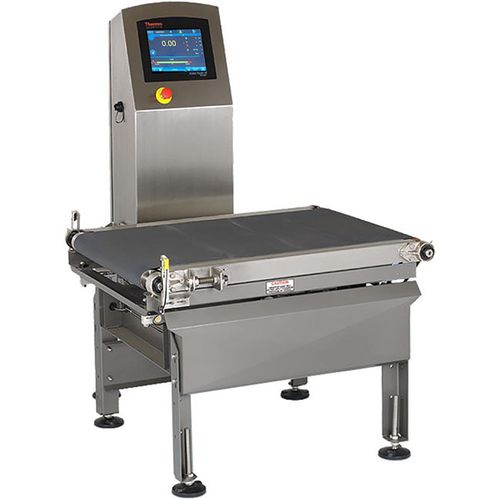

Frame checkweigher Versa Frame 44

for stainless steelfor checkweighersfor washdown applications

Product overview
Designed for rugged industrial environments with line rates up to 100 packages per minute (up to 400 fpm depending on package length), maximize your productivity with the durable and dependable Thermo Scientific™ Versa Frame 44 Heavy Duty Checkweigher.

Details
Built with a heavy-duty weigh frame and the Versa Control microprocessor, the Versa Frame 44 weighs large cases, bags, boxes and barrels up to 100 pounds (45 kg). This checkweigher is engineered for true in‑motion weighing, accurately weighing packages without stopping the conveyor for recalibration. The Versa Frame 44 is also equipped with a FDA approved food grade belt—making it suitable for transferring raw or frozen products, bags, cases or barrels.

Features

• Accurate on-line weighing of packages up to 100 lb (45 kg)
• Line rates up to 100 packages per minute — up to 400 fpm depending on package length
• Tough, heavy-duty construction for larger and heavier products
• Available FDA approved food grade belt
• Weigh frame design ensures reliable, low‑maintenance operation
• Easy-to-use interface with color touch-screen HMI
• Conversion kit available for upgrades

Additional information
Versa delivers highly intuitive and easy-to-use controls. Weight data output can be configured in a variety of industry standard formats and optionally integrated with a cubing/dimensioning system for a complete shipping inspection solution. Optional infeed spacing belts and discharge conveyors are available in addition to reject devices and visual and audible alarms.

Technical specifications

• Accuracy: Under 100 FPM and 40 pounds: +/-15 to 25 g. Over 150 FPM and 40 pounds: +/-25 to 45 g
• Air Requirements: 5.5-6.9 bar (80-100 psi)
• Certifications/Compliance: cCSAus
• Connections: USB; serial; parallel; FTP Ethernet; Modbus
• Description: Versa FR44-HD Checkweigher
• Diameter (English) Roller: 2.7 in.
• Diameter (Metric) Roller: 68.6 mm
• Electrical Requirements: Controller: 110 to 130 VAC or 200 to 250 VAC ± 10% 50/60 Hz, single phase
• Frame: Stainless steel
• Frequency: 50/60 Hz
• Height (English) Line: Standard: 18 - 48 in.; 2 in. increments with ±2 in. adjustment
• Height (Metric) Line: Standard: 457 - 1,219 mm; 51 mm increments with ±51 mm adjustment
• Length (English) Package: 45 in.
• Length (Metric) Package: 1143 mm
• Load Cell Construction: Stainless steel option for IP65
• Load Cells: (4) Strain Gauge
• Operating Temperature: 40° to 104° F (5° to 40° C)
• Options: Multiple options for reject and product handling; IP66 option pack; FDA belting; Tracker option; Combination systems with Thermo Scientific Metal Detector and X‑ray inspection system
• Power Consumption: 300 VA (control)
• Product Type: Versa FR44-Heavy Duty Checkweigher
• Rejects: Air pusher, swing gate
• Relative Humidity: 20 - 90%, non‑condensing
• Speed Range (English): 33 to 400 fpm
• Speed Range (Metric): 10 m/min minimum to 122 m/min maximum
• USB Port: Yes
• Weight (English) Max.: 100 lb.
• Weight (Metric) Max.: 45 kg
• Width (English) Belt: 18, 24, 30, 36 in.
• Width (Metric) Belt: 457, 610, 762, 914 mm
• Display Type: Color touchscreen
• Package Type: Case, bag, tote
• Washdown Option: Yes
