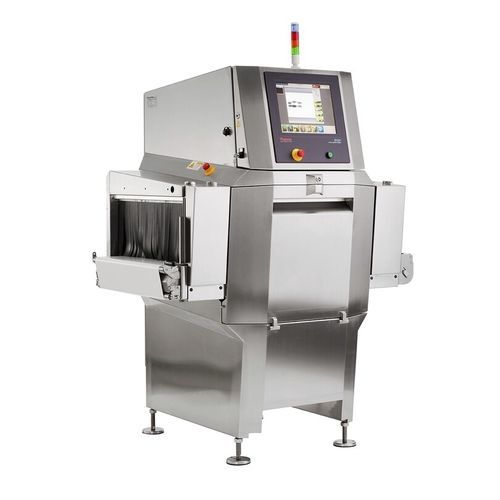

X-ray inspection system Xpert™

automatedfor defect detectionquality

Product overview
The Thermo Scientific™ Xpert™ Conveyor X-Ray Inspection Systems perform top-down vertical x-ray inspection for bags, boxes and other flat packages to detect contaminants and inspect product integrity. Systems are configurable for line integration, support multilane inspection and include software tools to reduce false rejects. Options include washdown upgrades to meet IP65 or IP69K and remote monitoring for diagnostics.

Key features

• Detects metal, glass, dense plastics and other foreign objects in large food packaging such as cases, bags and trays.
• Safety features: radiation scatter curtains, LED light pole, multiple emergency stops, X‑ray key switch, inspection-area door lock and safety interlocks on all doors.
• Product verification: weight and fill estimation, count and missing-object detection.
• Flexible software supports up to eight lanes simultaneously through the aperture to maximize throughput.
• Designed for continuous operation in demanding factory environments with built-in cabinet airconditioning.
• Built-in remote monitoring and diagnostics to reduce downtime.

Available models / Catalog
Catalog Number — Product Type
XPERTC400 — C400 X‑Ray Inspection System
XPERTC600 — C600 X‑Ray Inspection System
XPERTC800 — C800 X‑Ray Inspection System

Technical specifications

• Belt material: FDA approved urethane
• Belt speed: Up to 40 m/min (131 ft/min)
• Compressed air: 80–100 psi (5.5–6.9 bar)
• Conveyor heights available: 800–1000 mm (31.5–39.4 in); frames for nominal line heights 1200 and 1400 mm (47.2–55.1 in)
• Detector resolution: 0.8 mm standard, 0.4 mm optional
• HMI: 15-inch diagonal touchscreen with protective cover
• Inspection algorithms: weight, count, grid and custom options
• Interfaces: USB (watertight), Ethernet, 6 digital inputs, 4 digital outputs
• Interface languages: English, Spanish, Italian, French, German, Chinese; others on request
• IP rating: IP54 standard (optional IP65 with washdown airconditioner; upgrade to IP69K available)
• Machine cooling: Built-in cabinet airconditioner
• Multilane operation: Up to 8 lanes
• Operating temperature: 5°C to 40°C (41°F to 104°F)
• Product weight: Up to 45 kg (99 lbs)
• Radiation safety conformance: FDA CFR 21 part 1020.40; UK IRR 1999; RED act
• Relative humidity: 20% to 90% non-condensing
• Safety: X‑ray power key, emergency stops, radiation curtains, LED X‑ray imminent/on lights, magnetic door interlocks
• System / conveyor lengths available: 1.5 m (58.6 in); options for extended infeed/outfeed conveyors
• Voltage: 190–240 VAC, 50/60 Hz, 20 A service
• X‑ray power: Standard 100 W (70 kV / 1.4 mA); optional 200 W (75 kV / 2 mA) and 500 W (80 kV / 4 mA)
• Detection algorithms available: Binary, Contrast, Gradient, Groups, Morphology
• Detector scan rate: Up to 2800 lines/sec
