Radiocommunication repeater SRE

interfacewirelesstransmission

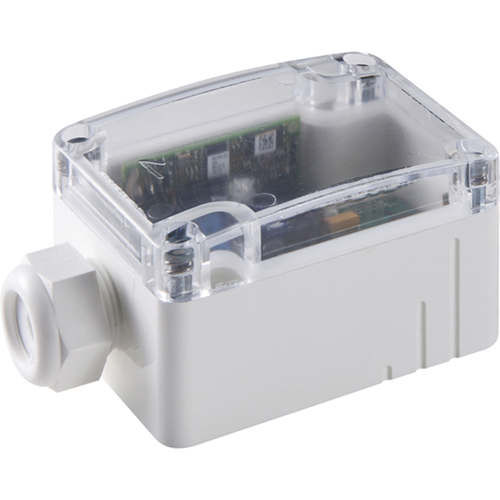

The SRE-Repeater is used for repeating radio telegrams between EnOcean transmitters and receivers/gateways. The repeater is typically used when transmission range problems occur between transmitter and receiver in an existing installation (e.g. due to walls being pulled in, furniture/cabinets being moved). Level 1, Level 2 and Smart Repeating (rule-based filters) can be set using the free airConfig software. Ideal for installation in suspended ceilings. • Application/type : Repeater • Interface : EnOcean (868 MHz) • Functions : level-1, level-2, smart-operation, rule based, max. 10 rules • Configuration : airConfig • Radio technology : EnOcean (IEC 14543-3-10) 868 MHz, 902 MHz, transmission power <10 mW • Data transmission : bidirectional, internal antenna, external antenna with magnetic base • Operating range temperature (°C) : -20..+60 • Operating ranges temperature (°C) : -20..+60 • Operating range humidity : max. 85% rH non-condensing • Power supply : flex. 15..240 V =/~ • Power consumption : typ. 1 VA (15..240 V =/~) • Enclosure : PA6.6, with quick lock screws • Colour : pure white, transparent cover PC • Protection (IP) : IP65, according to EN 60529 • Connection : terminal block, max. 1,5 mm² • Delivery content : incl. external receiving/transmitting antenna (2,5 m) with magnetic base • Device length (mm) : 78 • Device width (mm) : 58 • Device height (mm) : 46 • Weight (g) : 110
