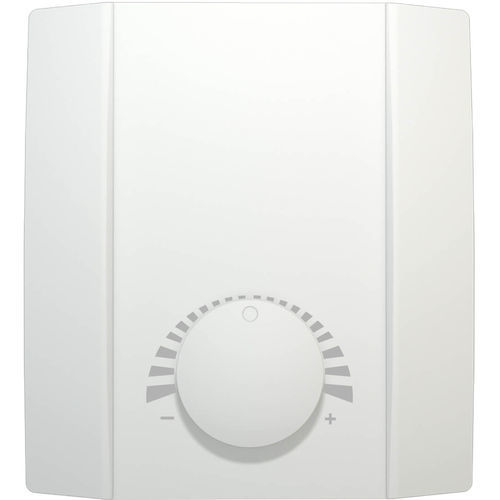

Room control unit NOVOS 3 x RS485 Modbus

humiditytemperaturedigital

The surface-mounted NOVOS 3 x comes in the NOVOS design with an integrated temperature sensor. Possible operating elements are set point potentiometer, status LED with up to 7 selectable colors and a presence button. It furthermore provides passive outputs to superior control systems. The separate back part with its connection terminals allows pre-wiring. Threshold values and display settings can be individually configured using the Thermokon NOVOSapp. • Application/type : Room operating unit • Purpose : Room Climate Control, Measure values • Measured values : temperature, relative humidity, absolute humidity, enthalpy, dew point, CO2, VOC, CO2/VOC mix • Interface : RS485 Modbus • Functions : temperature control, presence • Operating functions : setpoint adjustment temperature, presence detection • Operating elements : potentiometer (P), labelling {- [scale] +}, button (T), with LED 24 V =, colour configurable via jumpers (7 colours) • Configuration : NOVOSapp, uConfig, BUS, jumper • Input : 1x input for floating contact • Network technology : RS485 Modbus • Operating range temperature (°C) : -35..+70 • Output signal temperature : 0..+50 °C (default setting), selectable from 4 temperature ranges -50..+50 | 0..+50 | -20..+80 | -15..+35 °C • Operating range humidity : max. 85% rH non-condensing • Accuracy temperature : ±0,5 K (typ. at 21 °C), within default measuring range • Measuring range humidity : 0..100% rH non-condensing, 0..85 KJ/kg enthalpy, 0..50 | 0..80 g/m³ absolute humidity, 0..+50 | -20..+80 °C dew point, optionally configurable • Accuracy humidity : ±2% between 10..90% rH (typ. at 21 °C)
