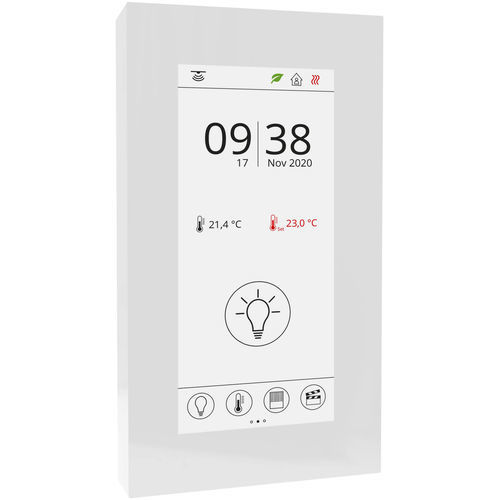

Room control unit thanos EVO RS485 Modbus

humidityfor fanstemperature

The high-grade materials and sophisticated design of the thanos EVO make it an outstanding room unit for high-end residential or commercial buildings. With its 4.8" touchscreen and up to 4 integrated sensors (temperature, relative humidity, CO2 and VOC), users can individually adjust multiple HVAC and lighting/blinds features. 2D room graphics make operations even more intuitive. External sensors and inputs enhance the multi-functionality of the thanos EVO. • Application/type : Room operating unit • Purpose : Room Climate Control, Lighting control, Scene control, Shading control, Measure values • Measured values : temperature, relative humidity, absolute humidity, enthalpy, dew point, CO2, VOC, CO2/VOC mix • Interface : RS485 Modbus • Functions : temperature control, fan control, change-over, window/door monitoring, presence, lighting, blinds/shutter • Operating functions : setpoint adjustment temperature, fan stage adjustment, presence detection, light ON/OFF/DIM, blind UP/DOWN/SET, setup scenarios, ECO function, showing measured value and history • Operating elements : touch screen • Configuration : NOVOSapp, uConfig, BUS, (depending on type) • Input : 1x input for floating contact • Network technology : RS485 Modbus • Data transmission : RTU, half-duplex, baud rate 9.600, 19.200, 38.400 or 57.600, parity: none (2 stop bits), even or odd (1 stop bit) • Operating range temperature (°C) : 0..+50 • Operating ranges temperature (°C) : 0..+50 • Output signal temperature : 0..+50 °C (default setting), selectable from 4 temperature ranges -50..+50 | 0..+50 | -20..+80 | -15..+35 °C, optionally configurable
