Power cable CXV/SWA – AXV/SWAinsulatedarmoredcircular
Add to favorites
Compare this product
Characteristics
- Type
- power
- Protection
- insulated, armored
- Configuration
- circular
- Core material
- copper
- Applications
- distribution, overhead
- Number of wire
- 3 wires
- Material of the insulation
- PVC-sheathed, XLPE-insulated
- Norms
- IEC
- Nominal voltage
Max.: 45 kV
Min.: 0 kV
- Temperature
90 °C
(194 °F)- Cross-section
Max.: 400 mm²
(0.62 in²)Min.: 35 mm²
(0.05 in²)
Description

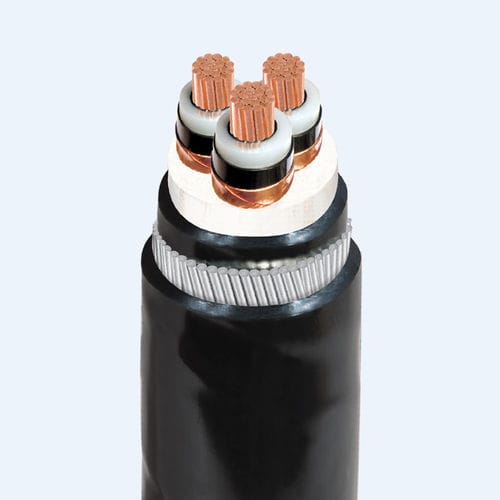

Power cable, three-cores, copper or aluminium conductor, armoured (galvanized steel wires), sheathed
Standards: IEC 60502-2, TCVN 5935
Construction: Cu(Al)/XLPE/PVC/SWA/PVC
Conductor: Annealed plain copper or aluminium (class 2, compacted circular)
Conductor screen: Semi-conductive compound
Insulation: XLPE
Insulation screen: Semi-conductive compound
Metallic screen: Copper tape
Filler, binder: PP, PET
Separation sheath: PVC
Metallic armour: Galvanized steel wires (SWA)
Binding tape: PET
Outer sheath: PVC (type ST2)
Cable identification: with color tapes lie between insulation screen and metallic screen
Cores: Red, yellow, blue
Outer sheath: Black
The above identifying can be changed as order
Used for overhead power transmission lines and power distribution.
