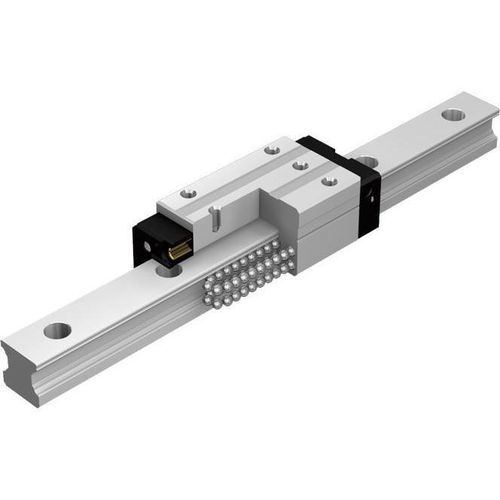

Ball bearing linear guide HDR series

30 mm25 mm55 mm

Overview
The Model HDR is a full-ball LM guide designed for compact, lightweight single-axis tables using a single LM rail. It provides high rigidity in the rolling direction, high accuracy and 4-way equal load capability. Available sizes: 15, 20, 25, 30, 35, 45, 55, 65.

Highlight Tags

• Flange
• Long-block LM Guide
• Bolts mounted from above and below
• Bolts mounted from above
• Short block (LM Guide)

Types / Typical Load Ranges and Sizes

• Model HDR-SC — Basic dynamic load rating (kN): 7.07 to 38.3; Basic static load rating (kN): 8.43 to 43.2. Sizes: 15, 20, 25, 30, 35.
• Model HDR-C — Basic dynamic load rating (kN): 10.9 to 195; Basic static load rating (kN): 15.7 to 228. Sizes: 15, 20, 25, 30, 35, 45, 55, 65.
• Model HDR-LC — Basic dynamic load rating (kN): 13.7 to 249; Basic static load rating (kN): 21.7 to 323. Sizes: 15, 20, 25, 30, 35, 45, 55, 65.
• Model HDR-SR — Basic dynamic load rating (kN): 15.3; Basic static load rating (kN): 19. Size: 20.
• Model HDR-R — Basic dynamic load rating (kN): 10.9 to 195; Basic static load rating (kN): 15.7 to 228. Sizes: 15, 20, 25, 30, 35, 45, 55, 65.
• Model HDR-LR — Basic dynamic load rating (kN): 13.7 to 249; Basic static load rating (kN): 21.7 to 323. Sizes: 15, 20, 25, 30, 35, 45, 55, 65.
• Model HDR-SV — Basic dynamic load rating (kN): 7.07 to 38.3; Basic static load rating (kN): 8.43 to 43.2. Sizes: 15, 25, 30, 35.
• Model HDR-V — Basic dynamic load rating (kN): 10.9 to 135; Basic static load rating (kN): 15.7 to 170. Sizes: 15, 25, 30, 35, 45, 55.
• Model HDR-LV — Basic dynamic load rating (kN): 13.7 to 161; Basic static load rating (kN): 21.7 to 219. Sizes: 15, 20, 30, 35, 45, 55.
• Model HDR-UV — Basic dynamic load rating (kN): 12.8 to 18.9; Basic static load rating (kN): 14.8 to 21.3. Sizes: 20, 25.
• Model HDR-UW — Basic dynamic load rating (kN): 18.7 to 27.6; Basic static load rating (kN): 25.3 to 36.4. Sizes: 20, 25.
• Model HDR-US — Basic dynamic load rating (kN): 12.8 to 18.9; Basic static load rating (kN): 14.8 to 21.3. Sizes: 20, 25.
• Model HDR-UT — Basic dynamic load rating (kN): 18.7 to 27.6; Basic static load rating (kN): 25.3 to 36.4. Sizes: 20, 25.
• Model HDR-GK — LM Blocks and LM Rails Available for Individual Sale. Sizes: 15, 20, 25, 30, 35, 45.

Features — Suited for Single Rail Applications
The HDR offers a rigid raceway geometry and back-to-back contact variants that achieve high rigidity in the rolling direction and resistance to tilt, allowing compact single-rail single-axis table designs.

Ideal Applications

• Single-axis tables requiring compactness and reduced weight
• Tables designed with one LM Guide per axis

LM Rail Surface Protected from Foreign Materials
The HDR places ball raceways on the sides of the LM rail, reducing exposure to contaminants. Optional plate covers can be fitted to improve protection against chips and debris.

Applications where foreign materials might stick to the LM rail surface

• Woodworking machines producing wood chips
• Tire manufacturing machines where rubber may adhere to rails
• Resin molding machines where resin may contaminate rails

Structure of the HDR
Ball raceways contact the balls at a 45° angle, providing tilt resistance in the rolling direction. Contact arrangements (DB/back-to-back and others) fully support the balls even under applied moments, delivering high rigidity and 4-way equal load capability for use in any orientation.

Globally Standard Dimensions
Model HDR dimensions conform to ISO 12090-1:2011 rolling bearing dimensions for most types; certain US/UT and UV/UW variants differ from ISO dimensions.

LM Blocks and LM Rails Available Separately
LM blocks and LM rails are interchangeable and sold separately when they share the same model number.

Dimensional Drawing / Dimensional Table (overview)
Detailed drawings and dimensional tables (units: mm) are provided per model variant, including outer dimensions, LM block dimensions, pilot hole information, LM rail dimensions, basic load ratings and static permissible moments for single and double block configurations.

Standard Lengths and Maximum Lengths of LM Rails (table)
Model No. | HDR15 | HDR20 | HDR25 | HDR30 | HDR35 | HDR45 | HDR55 | HDR65
LM rail standard lengths (L_O) sample rows:
160 | 160 | 220 | 280 | 280 | 570 | 780 | 1270
220 | 220 | 280 | 360 | 360 | 675 | 900 | 1570
280 | 280 | 340 | 440 | 440 | 780 | 1020 | 2020
340 | 340 | 400 | 520 | 520 | 885 | 1140 | 2620
400 | 400 | 460 | 600 | 600 | 990 | 1260 | -
460 | 460 | 520 | 680 | 680 | 1095 | 1380 | -
520 | 520 | 580 | 760 | 760 | 1200 | 1500 | -
580 | 580 | 640 | 840 | 840 | 1305 | 1620 | -
640 | 640 | 700 | 920 | 920 | 1410 | 1740 | -
700 | 700 | 760 | 1000 | 1000 | 1515 | 1860 | -
760 | 760 | 820 | 1080 | 1080 | 1620 | 1980 | -
... (table continues with full standard length progression per model)
Standard pitch: HDR15/20/25 = 60 mm; HDR30/35 = 80 mm; HDR45 = 105 mm; HDR55 = 120 mm; HDR65 = 150 mm.
G, g dimension (recommended gap): HDR15–25: 20 mm; HDR45: 22.5 mm; HDR55: 30 mm; HDR65: 35 mm.
Max length examples: Many sizes support up to 3000 mm; some larger HDR55/65 types list max lengths up to approx. 3060–3090 mm depending on size. Check per-model dimensional tables for exact maximum values.

Notes on Ordering and Dimensional Tables
Ordering notes specify static permissible moment differences for 1 block vs. 2 blocks, model number coding, ordering units and sample order configurations. The number of items per set varies by LM guide type.

Specifications / Technical Data

• Brand: THK
• Series / Model family: HDR
• Product type: Full-ball LM Guide
• Suited application: Single-axis / single-rail tables
• Key properties: High rigidity (rolling direction), high accuracy, 4-way equal load
• Raceway position: Ball raceways on sides of LM rail (protected from contamination)
• Contact angle: 45° raceway contact (resistant to tilt)
• Contact structures: DB (back-to-back) and other arrangements depending on variant
• Standards: Conforms to ISO 12090-1:2011 dimensions for many types (exceptions: US/UT and UV/UW)
• Available sizes: 15, 20, 25, 30, 35, 45, 55, 65 (varies by variant)
• LM Rails: Standard lengths listed per model; maximum length generally up to 3000 mm for many variants (per-model table required for exact values)
• LM Blocks and Rails: Sold separately and interchangeable within same model number
• Typical basic dynamic / static load rating ranges: see per-model listings above
