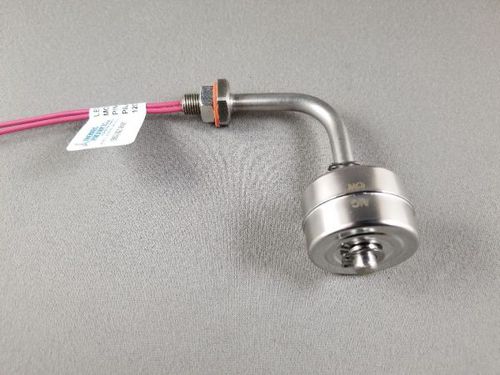

Float level switch 4900

for liquidsbrasscustom

Teflon® coated stems and floats are available. Consult factory. Lead wires are available in different lengths, terminated ends or cable. Consult factory. Relays are available for handling higher loads than allowed. See Accessories section for details. Custom bend locations are available per your specification. Consult factory. High temperature units are available up to 450°F. Consult factory. 100 VA SPST non-UL reed switches are stocked. Consult factory. Brass units use beryllium copper grip rings. SST units use 15-7 Mo SST grip rings. Optional collars are available from stock. See drawing 1.1. Consult factory. Silicone gasket 1″ 0.0. x 3/8″ 1.0. x 1/16″ thick 40 durometer. 1/8″ NPT mounting installs from inside the tank into a 1 /8″ NPT boss. 3/8″-24 UNF 2A mounting installs from the inside of the tank into a 13/32″ dia. hole. Interface floats are available. Consult factory.
