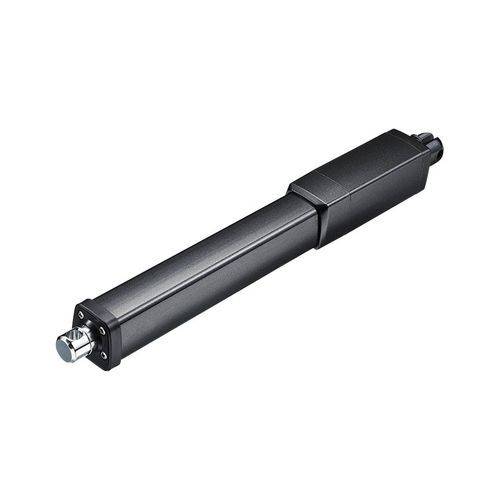

Electric cylinder JP4 seriesDC24-volt12-volt
Add to favorites
Compare this product
Characteristics
- Type
- electric
- Motor
- DC
- Voltage
- 24-volt, 12-volt
- Protection class
- IP69K, dust-proof
- Applications
- industrial, high-temperature
- Other characteristics
- high-speed, high-pressure, pull, push tug
- Stroke
Max.: 1,000 mm
(39.37 in)Min.: 20 mm
(0.787 in)- Force
3,000 N, 4,500 N
- Speed
Max.: 2.5 mm/s
Min.: 0 mm/s
- Ambient temperature
Max.: 65 °C
(149 °F)Min.: -5 °C
(23 °F)
Description
TiMOTION’s JP4 series inline linear actuator is most similar to the JP3, but was designed for industrial applications that require higher load and speed. Its IP69K protection ensures it will withstand high temperature, high pressure water jets, and the ingress of dust and other solid contaminants. For synchronization and position feedback, the JP4 can be equipped with Hall sensors.
• Retracted length: ≥ Stroke + 289mm
• Certificate: UL73
• Output signals: Hall sensors
• Color: Black, grey
• Operational temperature range at full performance: +5°C~+45°C
• Storage temperature range: -40°C~+70°C
Catalogs
JP4
7 Pages
