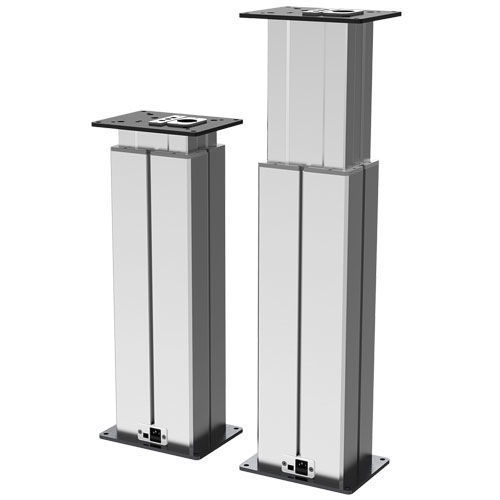

Lifting column for medical applications TL18AC seriesindustrialTV/monitor2-stage
Add to favorites
Compare this product
Characteristics
- Applications
- for medical applications, industrial, TV/monitor
- Structure
- 2-stage
- Electrical characteristics
- AC
- Force
Min.: 0 N
Max.: 4,500 N
- Stroke
Min.: 20 mm
(0.79 in)Max.: 700 mm
(27.56 in)
Description
TiMOTION’s TL18AC electric lifting column is designed for industrial and medical applications such as height-adjustable workstations, screen, and lifting tables. The TL18AC features an extruded aluminum rectangular appearance. It is equipped with an AC plug to connect the computers, TV, or other devices directly.
• Max. dynamic bending moment: 250Nm
• Max. static bending moment: 500Nm
• Max. speed at max. load: 6.6mm/s
• Max. speed at no load: 45mm/s
• Retracted length: ≥ 383mm
• Dimension of outer tube: 196.4*148.4mm rectangular
• Options: AC cable exit from top end, top side; Ethernet socket
• Voltage: 100~240V AC (SMPS)
• Operational temperature range: +5°C~+45°C
