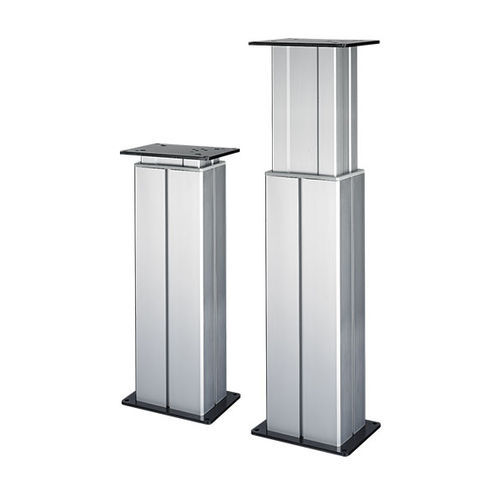

Lifting column for medical applications TL18 series

industrial2-stage24 V

The TL18 column is designed for medical applications such as nurse carts, ophthalmological devices, X-ray machines, etc. The TL18 features an extruded aluminum rectangular appearance. Our high capacity, yet economical, TL18 provides stable vertical lifting. This streamlines the engineering design process and replaces the older style, unsafe lifting mechanisms which have many moving stages and pinch points. • Max. dynamic bending moment: 200Nm • Max. static bending moment: 400Nm • Max. speed at max. load: 6.6mm/s • Max. speed at no load: 45mm/s • Retracted length: ≥ Stroke+147mm • Dimension of outer tube: 196.4*148.4mm rectangular • Certificate: IEC60601-1, ES60601-1, IEC60601-1-2, UL73, EMC • Output signals: Hall sensors • Options: Cable exit from top or bottom side, direct cut system • Operational temperature range: +5°C~+45°C
