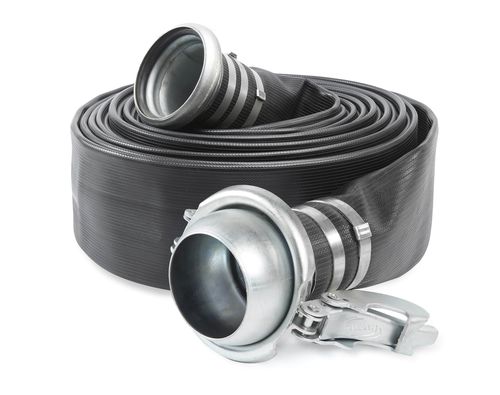

Water hose OROFLEX 10
nitrile rubbersynthetic yarnPVC

water hose
water hose
water hose
water hose
water hose
Add to favorites
Compare this product


Characteristics

Use
for water
Material
nitrile rubber, synthetic yarn, PVC
Applications
construction, transfer, for mining applications, for agricultural applications
Other characteristics
flexible, abrasion-resistant, chemical-resistant, lightweight, extruded, vulcanized, flat
Inner diameter

Min.: 30 mm
(1.181 in)

Max.: 254 mm
(10 in)

Outer diameter

Min.: 33.8 mm
(1.331 in)

Max.: 261.6 mm
(10.299 in)

Pressure

Min.: 10 bar
(145.038 psi)

Max.: 28 bar
(406.106 psi)

Temperature

Min.: -30 °C
(-22 °F)

Max.: 80 °C
(176 °F)

Delivered length

Min.: 15 m
(49'02" )

Max.: 100 m
(328'01" )

Description

Applications: Designed and recommended for water transfer and general pumping duties in irrigation, mining, construction, sewage, draining systems, water bypass operations and cable sheaths. Construction: Made from circularly woven 100% high tenacity synthetic yarn, completely protected and locked-in by tough, highly resistant synthetic nitrile rubber & PVC blend extruded through the weave and forming a single homogenous construction without the use of glues or adhesives. Lining Properties: a. Ultimate Tensile Strength of the lining: Minimum guaranteed value of 1,500 psi (10,500 kPa). b. Ultimate Elongation: 400% minimum. c. Accelerated Aging Test: The tensile strength and ultimate elongation of the vulcanized rubber compound have been tested with oxygen at a pressure of 300 psi +/- 10 psi (2100 kPa +/- 70 kPa), and a temperature of 70 degrees Celsius +/-1 degree (158 ºF +/- 18 ºF) for a period of 96 hours, after which the properties of the rubber are at least 60% of the original values. Abrasion Resistance: The OROFLEX 10 hose will extend the lifetime of your application when under extreme conditions, where abrasion is the main concern. Abrasion resistance > 2000 cycles. Service Temperature Range: Ozone Resistance: No visible signs of cracking appear on the lining or cover when tested in accordance with ASTM D518 Procedure B, 100pphm/104ºF (40ºC).

Catalogs

OROFLEX 10
OROFLEX 10
2 Pages
