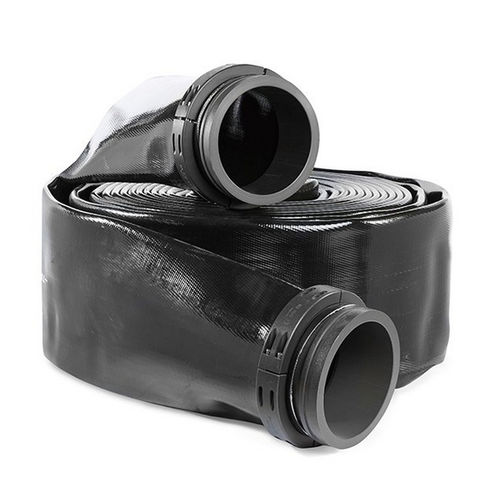

Water hose OROFLEX TERRAIN
synthetic yarnthermoplastictransport

water hose
water hose
water hose
water hose
water hose
Add to favorites
Compare this product


Characteristics

Use
for water
Material
synthetic yarn, thermoplastic
Applications
transport, transfer, for mining applications, for agricultural applications
Other characteristics
abrasion-resistant, chemical-resistant, UV-resistant, extruded, flat
Inner diameter

Max.: 305 mm
(12.008 in)

Min.: 102 mm
(4.016 in)

Outer diameter

Max.: 315 mm
(12.402 in)

Min.: 109 mm
(4.291 in)

Pressure

12 bar, 14 bar, 22 bar
(174.045 psi, 203.053 psi, 319.083 psi)

Temperature

Max.: 80 °C
(176 °F)

Min.: -40 °C
(-40 °F)

Delivered length

100 m
(328'01" )

Description

Black cover is the standard. Other colors are available upon request. Applications: Designed and recommended as a frack solution and fresh water transfer hose, liquid manure mainline drag hose, irrigation feeding line, sludge injection, dewatering, contaminated liquids/fertilizers, drinking water transport, mining, transport of compatible fluids (see chemical resistance chart), brackish and sea water and waste water transport. Construction: Made from circularly woven 100% high tenacity synthetic yarn, completely protected and locked-in by a tough, highly resistant thermoplastic polyurethane extruded through the weave, forming a single homogenous construction without the use of glues or adhesives. Its construction does not permit corrosion or scaling, while giving a high resistance against abrasion and cutting. Easy handling, storage & transport, which allows for fast installation and retrieval. 2% maximum hose elongation and 10% maximum hose expansion. Lining Properties: a. Ultimate Tensile Strength of the lining: Minimum guaranteed value of 40 MPa (5.800 psi). b. Ultimate Elongation: 500% minimum. Abrasion Resistance: The OROFLEX TERRAIN hose will extend the lifetime of your application when under extreme conditions, where abrasion is the main concern. Under practical conditions, thermoplastic polyurethane is considered to be the most abrasion resistant elastomeric material. Chemical Resistance: Exposure to seawater and contamination by most chemical substances, hydrocarbons, oils and greases has no effect on the short or long term performance of the hose.
