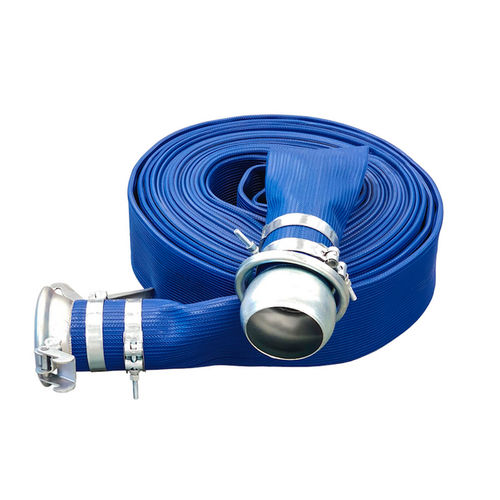

Water hose OROFLEX FLOW
nitrile rubbersynthetic yarnPVC

water hose
water hose
water hose
water hose
water hose
water hose
Add to favorites
Compare this product


Characteristics

Use
for water
Material
nitrile rubber, synthetic yarn, PVC
Applications
construction, transfer, for mining applications, for agricultural applications
Other characteristics
abrasion-resistant, chemical-resistant, extruded, vulcanized
Inner diameter

102 mm, 129 mm, 152 mm
(4.016 in, 5.079 in, 5.984 in)

Outer diameter

4.6 mm, 134.6 mm, 158.2 mm
(0.181 in, 5.299 in, 6.228 in)

Pressure

16 bar, 20 bar
(232.06 psi, 290.075 psi)

Temperature

Max.: 80 °C
(176 °F)

Min.: -20 °C
(-4 °F)

Delivered length

100 m
(328'01" )

Description

Applications: Designed and recommended for water transfer and as a main feeding line in agriculture. Ideal for general pumping duties in irrigation, mining, construction, sewa- ge, draining systems and water bypass operations. Construction: Made from circularly woven 100% high tenacity synthetic yarn, completely protected and locked-in by tough, highly resistant synthetic nitrile rubber & PVC blend extruded through the weave and forming a single homogenous construction without the use of glues or adhesives. Lining Properties: a. Ultimate Tensile Strength of the lining: Minimum guaranteed value of 1,500 psi (10,500 kPa). b. Ultimate Elongation: 400% minimum. c. Accelerated Aging Test: The tensile strength and ultimate elongation of the vulcanized rubber compound have been tested with oxygen at a pressure of 300 psi +/- 10 psi (2100 kPa +/- 70 kPa), and a temperature of 70 degrees Celsius +/-1 degree (158 ℉ +/- 18 ℉) for a period of 96 hours, after which the properties of the rubber are at least 60% of the original values. Abrasion Resistance: The OROFLEX FLOW hose will extend the lifetime of your application when under extreme conditions, where abrasion is the main concern. Abrasion resistance > 2000 cycles. Service Temperature Range: Special versions for higher and lower temperatures available upon request. Ozone Resistance: No visible signs of cracking appear on the lining or cover when tested in accordance with ASTM D518 Procedure B, 100pphm/104℉ (40℃).
