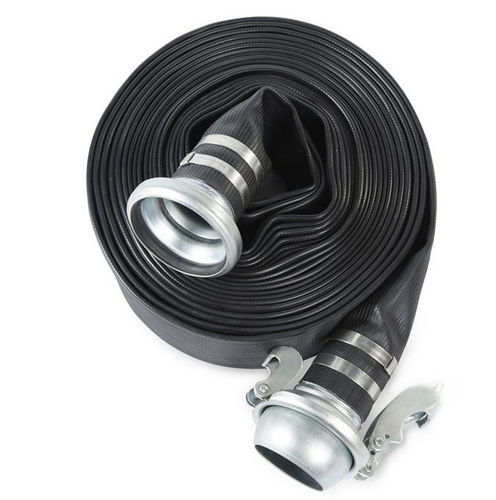

Water hose OROFLEX BANDAMA
nitrile rubbersynthetic yarnPVC

water hose
water hose
water hose
water hose
water hose
Add to favorites
Compare this product


Characteristics

Use
for water
Material
nitrile rubber, synthetic yarn, PVC
Applications
discharge, heavy-duty, agricultural
Other characteristics
abrasion-resistant, chemical-resistant, UV-resistant, rugged, extruded, vulcanized, for sludge
Inner diameter

Max.: 152 mm
(5.984 in)

Min.: 65 mm
(2.559 in)

Outer diameter

Max.: 159.2 mm
(6.268 in)

Min.: 71 mm
(2.795 in)

Pressure

Max.: 20 bar
(290.075 psi)

Min.: 12 bar
(174.045 psi)

Temperature

Max.: 80 °C
(176 °F)

Min.: -20 °C
(-4 °F)

Delivered length

100 m
(328'01" )

Description

Applications: Designed and recommended for travelling irrigators, lateral pivots, heavy duty dredge discharge, slurry, sludge and liquid manure pumping and any application where high resistance to abrasion is required. Construction: Made from circularly woven 100% high tenacity synthetic yarn, completely protected and locked-in by a tough, highly resistant synthetic nitrile rubber & PVC blend, extruded through the weave and forming a single homogenous construction without the use of glues or adhesives. Lining Properties: a. Ultimate Tensile Strength of the lining and cover: Minimum guaranteed value of 1,500 psi (10,500 kPa). b. Ultimate Elongation: 400% minimum. c. Accelerated Aging Test: The tensile strength and ultimate elongation of the vulcanized rubber compound have been tested with oxygen at a pressure of 300 psi +/- 10 psi (2100 kPa +/- 70 kPa), and a temperature of 70 degrees Celsius +/-1 degree (158 ºF +/- 18 ºF) for a period of 96 hours, after which the properties of the rubber are at least 60% of the original values. Abrasion Resistance: The OROFLEX BANDAMA hose will extend the lifetime of your application when under extreme conditions, where abrasion is the main concern. Abrasion resistance > 2000 cycles. Ozone Resistance: No visible signs of cracking appear on the lining or cover when tested in accordance with ASTM D518 Procedure B, 100pphm/104ºF (40ºC). Chemical Resistance: Exposure to seawater and contamination by most chemical substances, hydrocarbons, oils, and greases has no effect on the short or long term performance of the hose.
