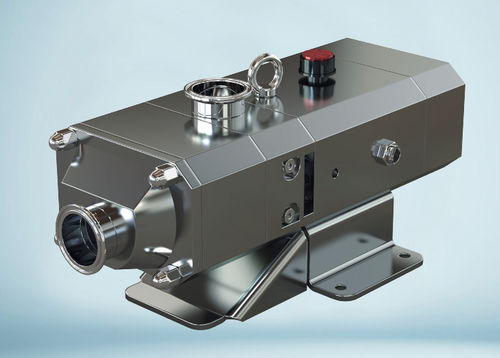

Beverage pump STS series
electric2 screwsstationary

beverage pump
beverage pump
beverage pump
beverage pump
beverage pump
Add to favorites
Compare this product


Characteristics

Fluid
beverage
Operation
electric
Technology
2 screws
Mobility
stationary, mobile
Domain
industrial, for the food industry, for the pharmaceutical industry, for the cosmetics industry
Applications
handling, lift, outlet
Material
stainless steel
Other characteristics
suction, mechanical, double, axial, seal
Flow

Min.: 19.4 m³/h
(685.10453 ft³/h)

110 m³/h
(3,884.61334 ft³/h)

Max.: 243.6 m³/h
(8,602.65281 ft³/h)

Pressure

Min.: 12 bar
(174.045 psi)

Max.: 20 bar
(290.075 psi)

Fluid temperature

Min.: -40 °C
(-40 °F)

Max.: 150 °C
(302 °F)

Input diameter

Min.: 2 in

Max.: 4 in

Output diameter

Min.: 2 in

Max.: 4 in

Weight

30.2 kg, 59.3 kg, 154.6 kg
(66.58 lb, 130.73 lb, 340.83 lb)

Description

The STS is a twin screw pump, with a hygienic design, suitable for use in the food, dairy, beverage and cosmetic industries. Application The STS is a twin screw pump, with a hygienic design, suitable for use in the food, dairy, beverage and cosmetic industries. The flow is uniform and in an axial direction, so there are no changes in the volume or physical properties of the product. Therefore, it is an ideal pump for handling shear-sensitive fluids. It has a high suction lift capability with very low NPSH values.It is capable of pumping liquids with high viscosity, but also with low viscosity, so it can be used as a CIP-supply pump.The design ensures full cleanability and drainability. Operation Twin screw pump is a positive displacement pump what means that the pump is transferring a certain volume of product in accordance with the speed and pitch of the screws. While turning, the two screws are forming closed chambers that are moving in an axial direction. This movement creates a vacuum at the inlet side and pressure at the outlet. Due to this double chamber technic, there is an almost pulsation free working with high and low viscosity products. User Benefits 100% CIP running at high speeds Single and double mechanical seal options Even when running at high pressures, there is no rotor/rotor/body contact Speed up to 3,500 rpm Ideal for abrasive products Gentle handling of cut-sensitive products
