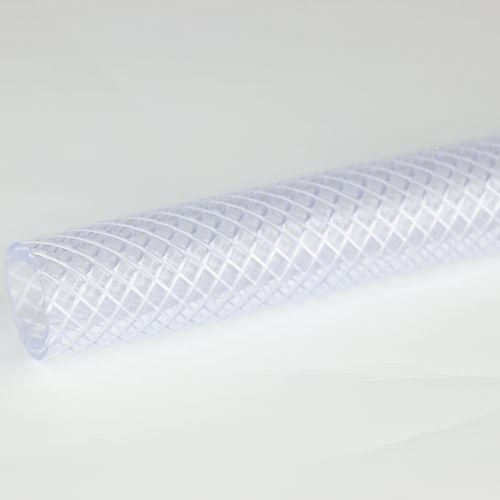

Reinforced hose BV series
hydraulicPVCpolyester

reinforced hose
reinforced hose
reinforced hose
reinforced hose
Add to favorites
Compare this product


Characteristics

Use
hydraulic
Material
PVC, polyester, vinyl
Other characteristics
flexible, translucent, reinforced, braided
Inner diameter

Min.: 6 mm (0.236 in)

Max.: 51 mm (2.008 in)

Outer diameter

Min.: 11 mm (0.433 in)

Max.: 62 mm (2.441 in)

Pressure

Min.: 4.8 bar (69.618 psi)

Max.: 17.2 bar (249.465 psi)

Temperature

Min.: -20 °C (-4 °F)

Max.: 60 °C (140 °F)

Description

REINFORCED VINYL HOSE See-through, flexible, glass smooth inner surface and reinforced with polyester, making Toford reinforced vinyl hose suitable for wide variety of industrial, commercial or home applications. Ideal for pressurized fluid and gas transfer and for pneumatic tools and air lines. The PVC compound used is in compliance with FDA CFR Title 21 requirements and the tubings are NSF372 listed certified lead-free. Make: PVC & Polyester Reinforced Braiding Color: Clear or translucent or colored Hardness: Shore A 83±3 Toxicity: NSF372 Certified Lead-free, FDA CFR Title 21 Compliant Temperature Range: -20°C ~ 60°C / -4°F ~ 140°F Packaging Options: Bulk Spool, Pre-Cut, Dispenser
