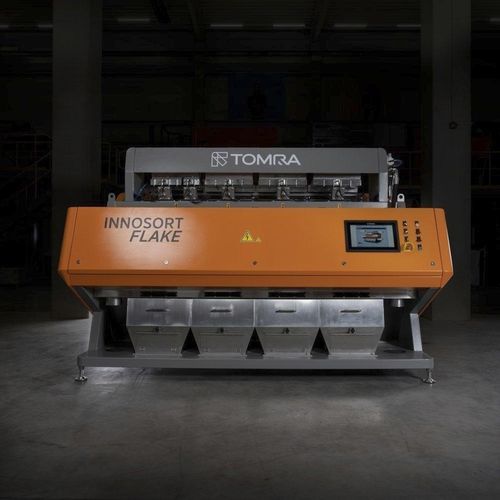

Plastic recycling sorter INNOSORT™ FLAKE

for recyclingindustrialcolor

Overview
INNOSORT™ FLAKE is a high-throughput flake sorting system designed for industrial plastic recycling. It combines near-infrared (NIR) polymer identification with dual-sided high-resolution color imaging and adjustable background illumination to separate polymers, colors and transparencies from mixed and contaminated streams.

Key benefits

• Flexible sorting for multiple polymers and transparencies
• Improved color discrimination and material purity
• High throughput suited to industrial recycling lines
• Simple operation, maintenance and plant integration
• Modular configuration for single- or multi-stage sorting

Features

• Advanced NIR spectrometer for polymer identification (standard)
• Dual-sided high-resolution color imaging for enhanced detection
• Enhanced dual full-color cameras (option) and RGB+NIR sensor combinations
• UV camera option for detection of aged flakes by fluorescence
• High-intensity long-life LED illumination with active cooling
• Adjustable color background to maximise contrast and color separation
• Integrated passive cooling for electronics and components
• Real-time sorting data and monitoring; dedicated sorting tasks on recovery tracks
• High-throughput industrial design, configurable channels (2/3/4) up to production requirements
• Optional TOMRA Insight for data analytics and process insights

Applications
Designed for PET and mixed-plastic recycling processes including washed flakes, post-consumer and post-industrial streams. Suitable for removing same-color contaminants, PVC, PP, PE, additives and aged material prior to extrusion or further purification.

Technical specifications

• Product name: INNOSORT™ FLAKE
• Sensors: NIR spectrometer (standard); RGB & NIR combinations (option)
• Imaging: Dual-sided high-resolution color imaging; enhanced dual full-color cameras (option)
• UV detection: UV camera option for fluorescence-based aged-flake detection
• Illumination: High-intensity long-life LEDs with active cooling
• Cooling: Integrated passive cooling for machine electronics
• Throughput: High-throughput flake sorting architecture; channel configurations available
• Data & control: Real-time sorting data, user-friendly controls; TOMRA Insight optional
• Integration: Modular design for simple integration into existing plants and recovery tracks
