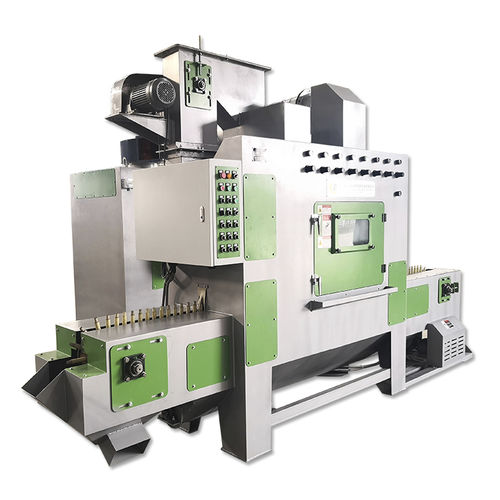

Automatic sandblasting machine dedicated for valve Conveyor sandblasting equipment TB-SC100A
Natural rubber truck inner tube nozzles, tire valve nozzles, etc., before fluidization, increase the roughness of sandblasting, etc.
Machine dimensions (mm): about L4430×W3500×H2735MM
Machine shell material: Q235
Workpiece conveying speed: 0.5~3m/min (frequency adjustable speed)
Conveying motor power: 750W, 1 set
Abrasive recovery method: screw conveyor + bucket elevator
Screw conveyor motor: 0.4KW, 1 set
Bucket elevator motor: 1.5KW, 1 set
Lighting in the machine cabin: 220v, 1×10w led light
Equipment compartment door: front and rear manual doors
Dust removal method: filter cartridge automatic pulse blowback
Dust removal power: 4.0KW
Number of spray guns: 8
Nozzle diameter (mm): φ8 (optional)
Power supply: total power about 6.7kw, 380v (220), 50hz
Compressed air source pressure: 5-8bar (kg/cm2)
Compressed air source volume: 5-8 m3/min
