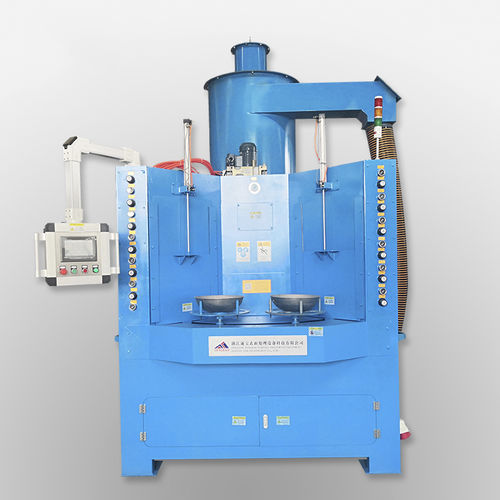

Double station turntable type automatic sandblasting machine
Automatic sandblasting equipment for pot products
Mainframe dimensions (mm): 2450(L)*2220 (W)*3350 (H)
Diameter of large turntable (mm): φ1500
Processing workpiece size (mm): φ300 (D) * 660 (H)
Number of processing stations: 4
Number of small turntables: 16
Number of spray guns (hands): 10 or 12
Spray gun working method: electric swing
Spray gun caliber: 8
Power supply: 380V, 50HZ
Total power (kW): about 8.5
Compressed air source pressure bar (kg/cm2): 5-8
Compressed air source air volume (m3/min): 8-12
Compressed air input caliber (inch): 1
Separator fan (KW): 7.5
Separator size (mm): φ800*1520 (H)
Air volume of separator (m3/min): 60
Host mass (kg): about 1500
Dust collector mass (kg): about 350
Dust removal power (hp): 10
Dust collector size (mm): 1500(L)*1500(W)*2200(H)
Sandblasting chamber lighting: 220V, 12W, LED light
Front workbench lighting: 220V, 12W, LED light
Front workbench door opening method: pneumatic
The machine can be customized: the number of spray guns is 8-16, the number of processing stations is 2-4, the diameter of the spray gun is 6/8/10, the filter cartridge and cloth bag of the dust collector are optional, the sand return method is optional by wind or mechanical, and electrical control is optional PLC touch screen.
