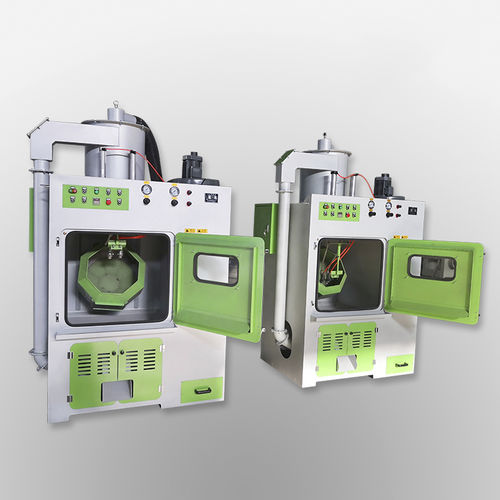

Automatic sandblasting machine TB-NR9080-2A

pressuredrum

It is suitable for automatic sandblasting of batches of small and medium-sized workpieces, such as screwdriver bits, screwdrivers, drill bits, screws, taps, sleeves, screws, buttons, acrylic, bakelite products, electronic parts, machine parts and other similar products. 1. Automatic control, automatic sandblasting, with timing sandblasting and electric positioning functions. 2. Novel design, beautiful appearance, scientific structure and convenient operation. 3. Scrolling on the front, easy to access and change the workpiece. 4. The rotating speed of the drum adopts frequency conversion speed regulation, and the operation is stable, which can meet different processing needs. The spray gun adopts a swing mechanism to increase the coverage and efficiency of sandblasting. 5. This machine adopts top-spinning sand-returning method, which effectively makes the sand output 1-3 times that of ordinary models. Product parameters: product size (mm): 1500×1260×2580 Roller size (mm): φ600×400 Number of rollers: 1 Roller carrying capacity: ≤ 20 kg Total mass: 750 kg Power supply: 380V, 50HZ Total power: about 1.8KW Separator size (mm): φ500×858 Number of spray guns: 2 Lighting lamp: 220V, 12W, LED light Drum motor power: 0.2KW Separator fan power: 1.5KW Dust removal power: 2hp Compressed air source pressure: 5-8 bar (kg/cm2) Compressed air source volume: 1.6—3 m3/min Door opening method: front opening Spray gun lifting method: manual
