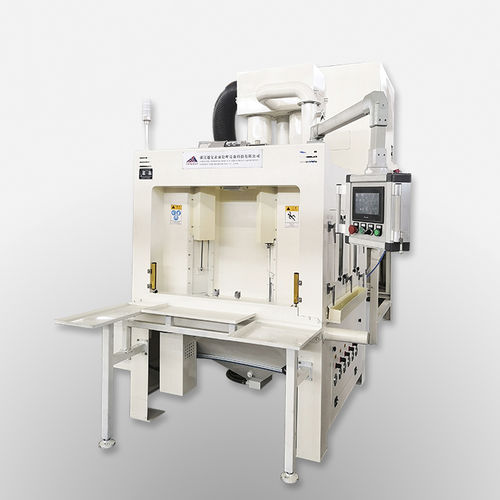

Automatic sandblasting machine TB-NT1419-8A

suctionrotating tablefor surface treatment

Double station turntable type automatic sandblasting machine Mainframe dimensions (mm): 2020(L)*2050 (W)*3000 (H) Diameter of large turntable (mm): φ1150 Processing size (mm): φ250 (D) * 220 (H) Number of processing stations: 2 Number of small turntables: 8 Number of spray guns (hands): 8 Spray gun working method: electric swing Spray gun caliber: 8 Power supply: 380V, 50HZ Total power (kW): about 6.5 Compressed air source pressure bar (kg/cm2): 5-8 Compressed air source air volume (m3/min): 6.4—9.6 Compressed air input caliber (inch): 1 Separator fan (KW): 5.5 Separator size (mm): φ500*858 (H) Air volume of separator (m3/min): 45 Host mass (kg): about 1100 Dust collector mass (kg): about 350 Dust removal power (hp): 7 Dust collector size (mm): 1500(L)*1500(W)*2200(H) Sandblasting chamber lighting: 220V, 12W, LED light Front workbench lighting: 220V, 12W, LED light Front workbench door opening method: pneumatic The machine can be customized: the number of spray guns is 6-12, the number of processing stations is 2-4, the diameter of the spray gun is 6/8/10, the dust collector filter cartridge and the cloth bag are optional, the sand return method is optional by wind or mechanical, and the electrical control is optional PLC touch screen.
