Micro pump MG200W

waterfor solventsfor coolant

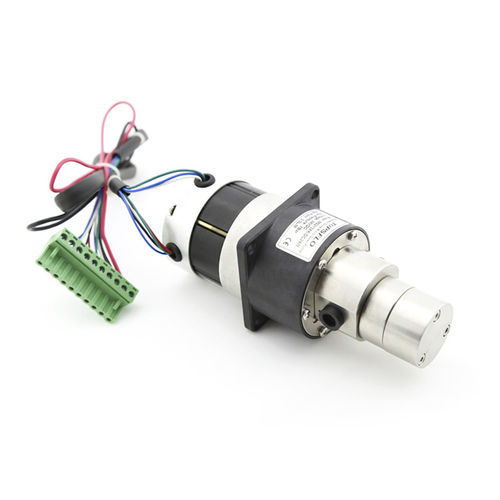

MG200 Series / Magnetic Drive Micro Gear Pump (DC brushless motor, outside controller) 1. Using magnetic coupling drive without leakage, 316 L stainless steel shell, PEEK materials gear, PTFE sealing materials,use brushless DC motor combination with smaller size, can with built-in limit pressure valve, the flow rate can be realized adjustment without steps. 2. Pump can be used in the -0.1 Mpa～2Mpa closed systems, the rated output pressure is 0.5 Mpa (medium: water), the maximum output pressure is 1.4 Mpa , output flow rate with 50～3500 ml / min. 3.Widely used in hemodialysis machines, printing machine,pictorial machine, medicine, madical,chemicals,water treatment, printing, cleaning, packaging, filling machines, food processing, and other areas of liquid delivery, particularly suitable for printing machine,pictorial machine,barcode machine. Magnetic Drive Gear Pump Features: 1.High differential pressure capability，small size 2.Excellent suction capability 3.Smooth, Pulseless Delivery 4.Easy to Service Chemical resistance 5.DC Motor drive. 6.Safer fluid containment 7.Excellent for lubrication and recirculation 8.Repeatable and predictable flowrate 9.Reversible 10.Brushless motor Longer life Magnet drive Micro gear pumps Main Application: • Medical and surgical equipment • Hemodialysis apparatus • Laser apparatus • Lubrication • Ink-Jet printing systems (CIJ Ink Printers to Paint metering and Transfer applications) • Cooling systems • Laboratory • Water treatment • Food processing equipment （Coffee, hot and cold drinks, mixing, milk,and carbonation） Get product catalogs and samples, please contact us ! http://www.topsflo.com/micro-gear-pump/mg200xk-dc24w.html
