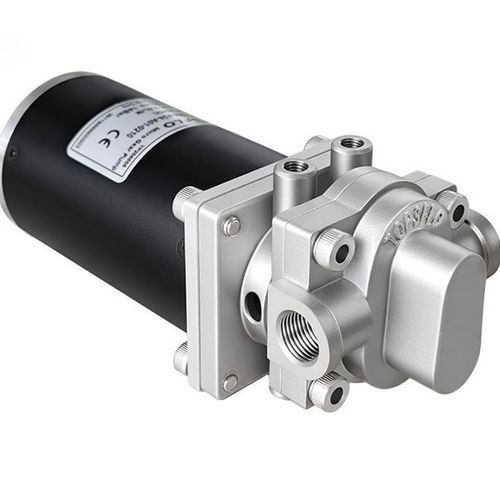

Gear pump TG-06

waterbeveragebrushless DC

High Pressure Micro DC Gear Pump TG-06 Features - Ultra-compact design with small size and light weight, saving installation space - Wetted materials meet FDA standards, safe for direct food contact - Low pulsation with smoother water flow - Easy maintenance and reliable work - Low fluid loss and high pressure Mainly used in: - Automatic Commercial Coffee Machine - Milk Frothing - Espresso Machine - Syrup Dispensing - Beverage Dispensing - Wine Dispensing Specifications Model: TG06-A24-A01-0210 Rated Voltage (VDC): 24 No load Current (A): 1.1 Max. Load Current (A): 8 Head (Bar): 14 Flow (L/min): 2.8 - Ambient temperature: -25°C~70°C (except for freezing) - Liquid temperature: 0°C~80°C - Working mode: Interrupt - Operating voltage range: 24V pump range is 18~28V Applications TG-06 High Pressure Micro DC Gear Pump Applications: Automatic Commercial Coffee Machine, Milk Frothing, Espresso Machine, Syrup Dispensing, Beverage Dispensing, Wine Dispensing Customization - Function: Electronic functions, Gear materials, Terminal harnesses - Strength: 16000㎡ modern factory with its own physical property rights, ESD anti-static control dust free workshop, 100+ sets of professional imported equipment - 4 major professional and precision laboratories that meet the CNAS national laboratory accreditation standards - More than 60 patents in the micro dc pump industry, strong research and development strength, and master advanced industry technology Technical Specifications - Model: TG06-A24-A01-0210 - Rated Voltage: 24 VDC - No load Current: 1.1 A - Max. Load Current: 8 A - Head: 14 Bar - Flow: 2.8 L/min - Ambient temperature: -25°C~70°C (except for freezing) - Liquid temperature: 0°C~80°C - Working mode: Interrupt - Operating voltage range: 18~28V
