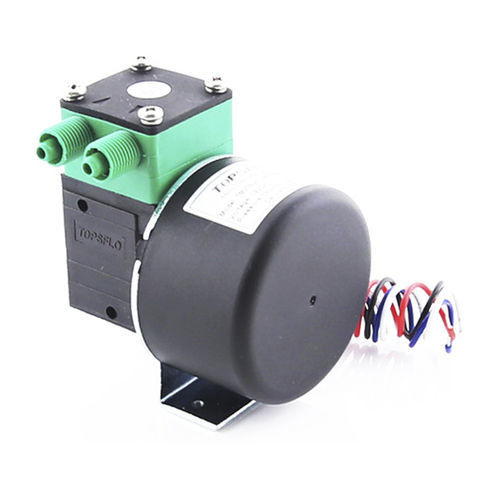

Air pump TM30B-H

for gaswith brushless DC motorself-priming

Mini Diaphragm Vaccum Pump TM30B-H Motor Type:Brushless DC motor Max flow rate:4.5L/min Max pressure:130Kpa, Max vacuum: 65Kpa Voltage:6V/12V /24V Ideal Life Time:10000 Hours Working Mode:Continuous or Interrupt Diaphragm Vaccum Pump TM30B offer multiple component configurations allowing them to be used for either vacuum operation, pressure operation, or alternating vacuum and pressure operations.The innovative, compact design incorporates leading edge technologies that allow it to operate harder, quieter and longer, reliabler, highly efficient. Features: 1.Highest Performance/Size Ratio 2.Performs Quieter 3.Lasts Reliably Longer, 10000h lifetime 4.Uncontaminated flow 5.Little vibration 6.High level of gas tightness 7.Optimal solution for your application Wetted material options: 1.Optional membrane materials: - - - - EPDM for normal air - - - - PTFE for corrosive air,like acid, alkali air, ozone etc. 2.Optional valve materials: EPDM for normal air - - - - FPM for corrosive air, like acid, alkali, ozone,etc. - Application: The versatility of TOPSFLO pumps allows a wide field of applications to be covered. Over many years our pumps have proved themselves in the following areas: Industrial pressure and vacuum applications Portable Analytical Instruments Medical Equipment Air Quality Sampling Monitors Respiration Monitors Gas or Odor Leak Detectors http://www.topsflo.com/mini-diaphragm-pump/tm30b-h.html
