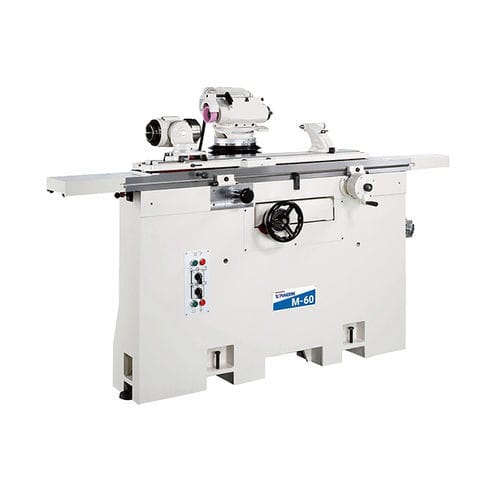

Cutting tool grinding machine M-60
Add to favorites
Compare this product
Characteristics
- Applications
- cutting tool
- Spindle speed
2,600 rpm, 3,700 rpm, 6,200 rpm
(16,336 rad.min-1, 23,248 rad.min-1, 38,956 rad.min-1)- Power
1.1 kW
(1.5 hp)- X travel
600 mm
(23.62 in)- Y travel
250 mm
(9.84 in)- Machine weight
1,370 kg
(3,020.33 lb)
Description
Verticle Movement of Wheelhead (Z-axis) - 250 mm
Distance Between Center - 900 mm
Distance Between Tailstock and Workhead - 780 mm
Workbench
T-slot - 15 mm (+0.05 mm ～ +0.10 mm)
Working Range of Table - 135 x 1140 mm
Rotative Angle of Table - ±60º
JOG Adjustment of Table - ±10º
Workhead
Workhead Taper - One end MT5 / the other NT50
Wheelhead
Inclination of Wheelhead - ±15º
Rotative Angle of Wheelhead - 360º
Distance Between Center of Spindle and Table - Max. 300 mm / Min. 50 mm
Distance Between Center of Spindle and T-slot - Max. 415 mm / Min. 165 mm
Machine Dimensions
Dimensions (L x W x H) - 2740 x 1550 x 1384 mm
