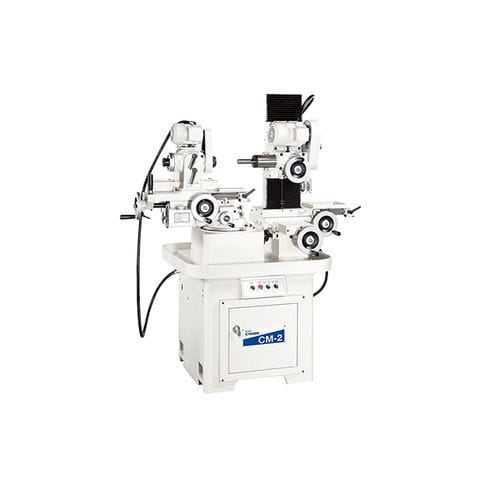

Tool grinding machine CM-2

verticalhorizontal

Accuracy Rigidity Efficiency Specifications Workhead Max. Swing diameter - 304 mm Max. Collet work diameter - 32 mm Min. Collet work diameter - 5 mm Max. Spiral angle - 60º Max. Distance between nose of spindle and center of tailstock - 100 mm,152 mm Grinding wheel head Grinding Diameter - 100 mm Workhead Slide travel - 130 mm Offset slide travel - 100 mm Front of center - 50 mm Rear of center - 50 mm Angle adjustment of Workhead Rotation of Horizontal plane - ±105º(210º) Rotation of Vertical plane - ±40º Machine L x W x H - 1600 x1150 x 1650 mm Standard Accessories Wheelhead toothrest assembly with extension bar Grinding wheel guards with extension bar Front stock support Straight cylindrical collets: metric sizes:5, 6, 8, 10, 12, 16, 20, 25 & 32mm Straight cylindrical collets: inch sizes:1/4, 5/16, 3/8, 7/16, 1/2, 5/8, 3/4, 7/8, 1, 1 1/8 & 1 1/4" Set of (5) grinding wheel flanges. (4)standard and (1) extension flange. Diamond holder bracket Wrench for workhead Wrench for workhead Adjustable tailstock support unit Spanner for grinding wheel Standard Arbor Screw driver Set of wrenches Double-end spanner Set of (4) index plates for spiral lead Machanism 0,8,10 & 12 divisions Tool box Grinding wheel (one each of straight, flaring cup and dish shape Additional diamond truing tool with diamond nib Spring-loaded index pawl for workhead 1/2" wheel flange and spanner
