- Topwork Industry Co., Ltd.

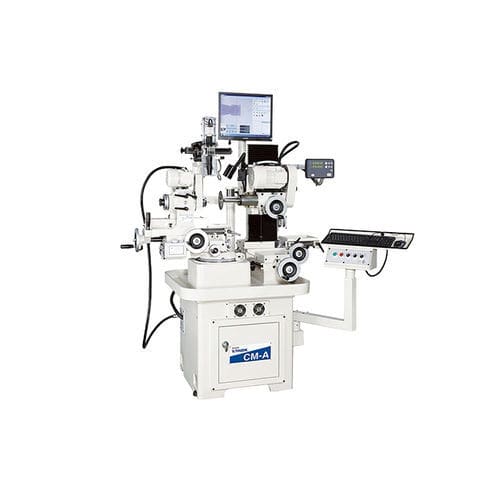

Tool grinding machine CM-Averticalhorizontal
Add to favorites
Compare this product
Characteristics
- Applications
- tool
- Structure
- vertical, horizontal
- Spindle speed
4,000 rpm, 6,000 rpm, 8,000 rpm
(25,133 rad.min-1, 37,699 rad.min-1, 50,265 rad.min-1)- Power
0.19 kW, 0.37 kW
(0.26 hp, 0.5 hp)- Distance between centers
100 mm, 152 mm
(4 in, 6 in)- Machine weight
1,030 kg
(2,270.76 lb)
Description
Max. Swing diameter - 304 mm
Max. Collet work diameter - 32 mm
Min. Collet work diameter - 5 mm
Max. Spiral angle - 60º
Max. Distance between nose of spindle and center of tailstock - 100 mm,152 mm
Grinding wheel head
Grinding Diameter - 100 mm
Workhead
Slide travel - 130 mm
Offset slide travel - 100 mm
Front of center - 50 mm
Rear of center - 50 mm
Angle adjustment of Workhead
Rotation of Horizontal plane - ±105º(210º)
Rotation of Vertical plane - ±40º
Grinding wheelhead
Longitudinal Slide travel - 110 mm
Vertical Slide travel - 240 mm
Cross slide travel - 170 mm
Machine
L x W x H - 2100 x 1150 x 2050 mm
