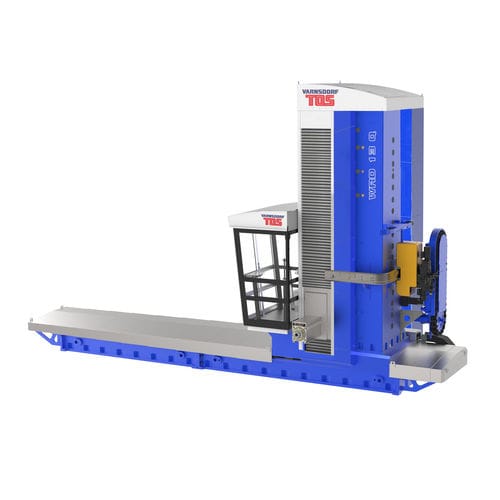

Floor boring mill WRD 13 (Q)
CNChorizontal4-axis

floor boring mill
floor boring mill
floor boring mill
floor boring mill
floor boring mill
floor boring mill
floor boring mill
Add to favorites
Compare this product


Characteristics

Control type
CNC
Spindle orientation
horizontal
Other characteristics
4-axis, high-precision, traveling-column, rotating table, high-productivity, heavy-duty, floor, for large workpieces, for automatic tool changers
X travel

Min.: 3,000 mm (118 in)

Max.: 20,000 mm (787 in)

Y travel

Min.: 2,000 mm (79 in)

Max.: 3,000 mm (118 in)

Z travel

700 mm (28 in)

Power

41 kW (55.74447 hp)

W travel (spindle)

650 mm (26 in)

Spindle diameter

130 mm (5 in)

Description

+ The horizontal boring and milling machine with traveling ram and the working spindle type WHR / WRD 13 (Q) is based on the original generation of CNC horizontal milling and boring machines WHN (Q)13 CNC of TOS VARNSDORF a.s + WRD 13 (Q) is horizontal boring and milling machine which are offered with spindle diameter 130 mm. + The machines are continuously controlled in four axes (X - base cross travelling, Y - headstock vertical adjustment, Z - sliding block longitudinal travel and W - working spindle longitudinal travel). + machine can be extended with a wide selection of technological accessories that significantly widen the machine technological utility value + HEIDENHAIN TNC 640, Sinumerik 840 D-SL or FANUC 31i control system can be selected for controlling the machine. Basic options of the machine + WRD 13 - the basic model + WRD 13 Q - the Automatic Tool Changer (ATC) equipped model + WRD 13 MC - the full-fledged machining center equipped with both, ATC and APC
